Part # HA765-106V
INSPECTION ACCESS SERVICE KIT
Product Details
Specifications
- Approval
- Kit with Approved Contents
- Condition
- New
- Manufacturer
- Hutch Aviation
- Dimensions
- L: 15 x W: 3 x H: 15 in
- Weight
- 5 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- HA765-106V
Product Description
HA765-106V Access Hole Kit
Alternative to Piper 765-106V Kit
Designed to support inspection of the main wing spars for corrosion on various Piper aircraft. This kit provides the required structural access openings in the lower wing skin to allow direct visual inspection of the inboard main wing spar, as specified in Piper Service Bulletin SB1304A. Installation of access holes in accordance with SB1304A is necessary to accomplish the recurring inspections mandated by AD 2020-24-05.
When installed per the service bulletin instructions, HA765-106V allows for easy maintenance to properly inspect the left and right wing spar structure without extensive disassembly, supporting continued airworthiness and regulatory compliance. Refer to Service Bulletin SB1304A and AD 2020-24-05.
Features:
- Alternative to Piper P/N 765-106V
- Cost-effective alternative to the OEM access hole kit
- Designed for compliance with AD 2020-24-05 when installed per SB1304A
- Provides reinforced access openings to the inboard main wing spar area
- Compatible with SB1304A inspection locations and procedures
Purpose:
Provides permanent access openings in the left and right wing lower skin to allow inspection of the main wing spars for corrosion, as required by Piper SB1304A and FAA AD 2020-24-05.

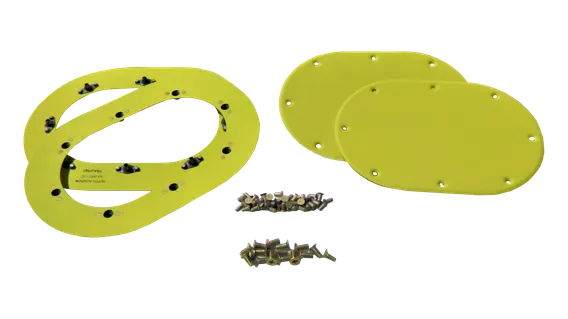

| Kit Component P/N | Description | Quantity |
|---|---|---|
HA385752-02 |
Cover |
2 |
HA38571-02 |
Doubler |
2 |
420-722 |
Rivet |
40 |
414-761 |
Screw |
16 |
WARNING: Cancer and/or Reproductive Harm - California Proposition 65 Resources
Eligible Aircraft
| Make | Model | Start S/N | End S/N | Eligibility Chart |
|---|---|---|---|---|
| Piper PA-28-140 | PA-28-140 | S/N 28-20001 – 28-26946 | 28-26946 | Eligibility Chart 2594 |
| Piper PA-28-150 | PA-28-150 | S/N 28-1 – 28-4377 | 28-4377 | Eligibility Chart 2594 |
| Piper PA-28-160 | PA-28-160 | S/N 28-1 – 28-4377 | 28-4377 | Eligibility Chart 2594 |
| Piper PA-28-180 | PA-28-180 | S/N 28-671 – 28-5859 | 28-5859 | Eligibility Chart 2594 |
| Piper PA-28-180 | PA-28-180 | S/N 28-671 – 28-7205318 | 28-7205318 | Eligibility Chart 2594 |
| Piper PA-28-180 | PA-28-180 | S/N 28-671 – 28-7505260 | 28-7505260 | Eligibility Chart 2594 |
| Piper PA-28-235 | PA-28-235 | S/N 28-10001 – 28-11378 | 28-11378 | Eligibility Chart 2594 |
| Piper PA-28-235 | PA-28-235 | S/N 28-10001 – 28-7210023 | 28-7210023 | Eligibility Chart 2594 |
| Piper PA-28-235 | PA-28-235 | S/N 28-10001 – 28-7710089 | 28-7710089 | Eligibility Chart 2594 |
| Piper PA-32-260 | PA-32-260 | S/N 32-1 – 32-04 | 32-04 | Eligibility Chart 2594 |
| Piper PA-32-260 | PA-32-260 | S/N 32-1 – 32-1297 | 32-1297 | Eligibility Chart 2594 |
| Piper PA-32-260 | PA-32-260 | S/N 32-1 – 32-7800008 | 32-7800008 | Eligibility Chart 2594 |
| Piper PA-32-300 | PA-32-300 | S/N 32-40000 – 32-15 | 32-15 | Eligibility Chart 2594 |
| Piper PA-32-300 | PA-32-300 | S/N 32-40000 – 32-21 | 32-21 | Eligibility Chart 2594 |
| Piper PA-32-300 | PA-32-300 | S/N 32-40000 – 32-40974 | 32-40974 | Eligibility Chart 2594 |
| Piper PA-32-300 | PA-32-300 | S/N 32-40000 – 32-7840222 | 32-7840222 | Eligibility Chart 2594 |
Cross Reference
Reference only: Please verify this product is appropriate for your use case before adding to your cart.
-
HASK765-106V
-
SK765-106V
