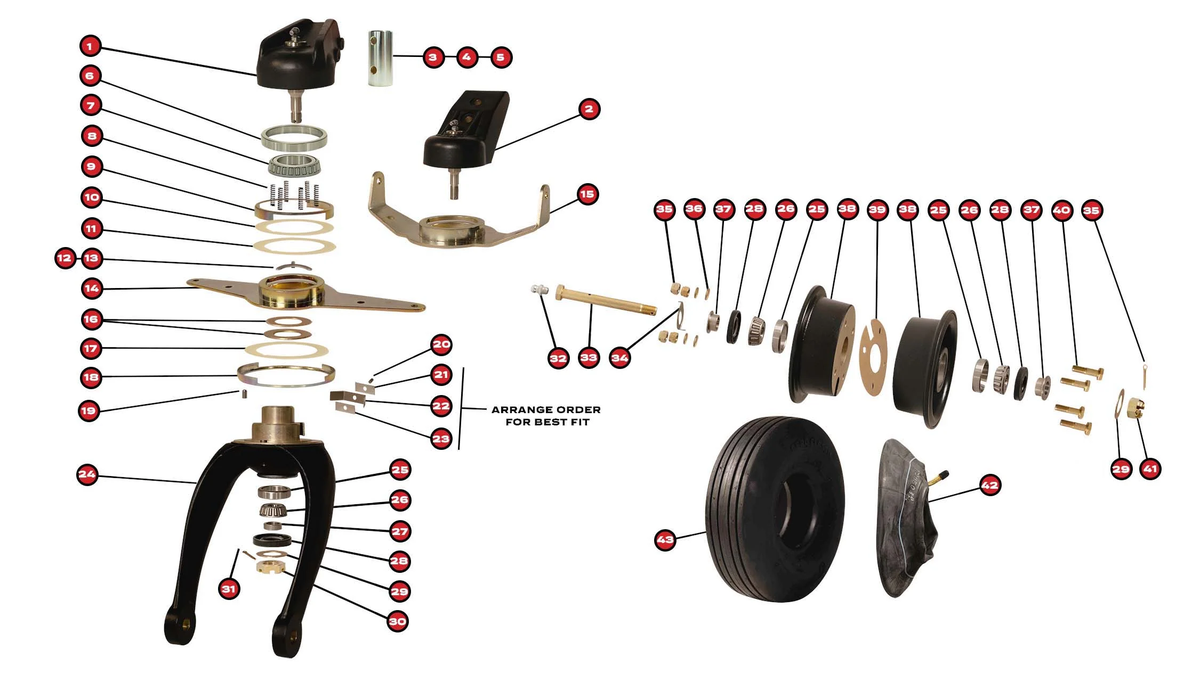

3450 Scott Replacement Tailwheel Assembly

ABI-3412-M K

Tailwheel Head

1

ABI-3450-23-M K

2-bolt Tailwheel Head

2

ABI-3412-S1.00

Head Spacer, 1”

3

ABI-3412-S.937

Head Spacer, 5/16”

4

ABI-3412-S.875

Head Spacer, 7/8”

5

8231

Bearing Race

6

08118

Bearing

7

ABI-3233-00

Compression Spring

8

ABI-3411-02

Dust Cap, Upper

9

ABI-3408-00

Thrust Washer

10

ABI-3408-01

Fiber Thrust Washer

11

ABI-3219-02

Long Pawl

12

ABI-3219-00

Short Pawl

13

ABI-3410-05

Tailwheel Straight Steering Arm

14

ABI-3410-03

Tailwheel Bent Steering Arm

15

ABI-3407-00

Spacer

16

ABI-3408-02

Fiber Thrust Washer

17

ABI-3411-01

Dust Cover, Lower

18

ABI-232-046

Dowel Pin

19

ABI-3257-00

Pin

20

ABI-3258-00

Spacer

21

ABI-3432-00

Turn Lock Spring

22

ABI-3258-01

Spacer

23

ABI-3423-01 K

10” Fork

24

A4138

Bearing Race

25

A4050

Cone Bearing

26

ABI-2504-01

Spacer

27

ABI-1863

Bearing Grease Seal

28

AN960-816L

Washer

29

AN320-8

Shear Nut

30

MS24665-283

Cotter Pin

31

T7201

Zerk Fitting

32

ABI-3236

Axle Bolt

33

ABI-3225-00

Tab Lock Washer

34

MS21044N4

Self Locking Nut

35

AN960-416

Washer

36

ABI-3227-00

Spacer

37

ABI-3244 K

Wheel Half

38

ABI-2602

Gasket

39

AN4-7A

Wheel Bolt

40

AN310-8

Castle Nut

41

10X350X4

6Ply, 10” Tire

42

10x350

10” Tire Tube, 10x350

43
