Carbon Monoxide Detectors and Monitors

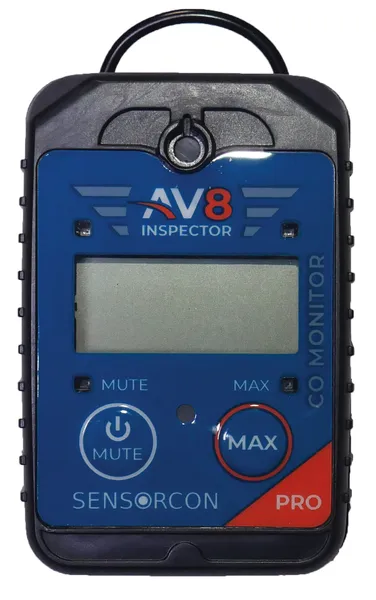

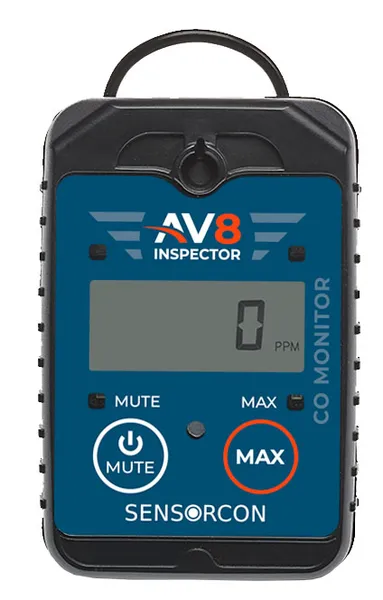

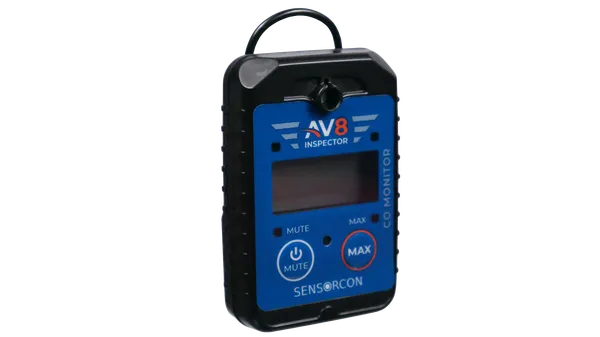

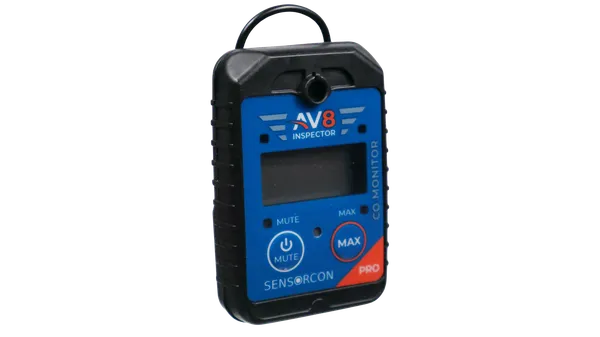

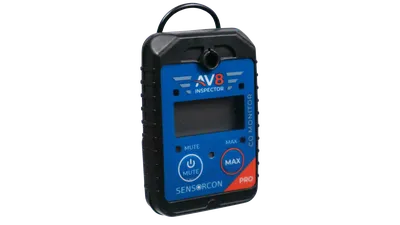

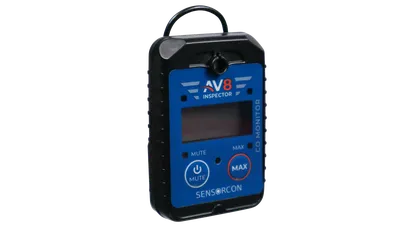

Sensorcon AV8 Inspector Series

P/N AV8-CO-01 & AV8-CO-03

Portable Carbon Monoxide Monitor for Aviation

Advanced sensor technology allows for accurate readings of carbon monoxide concentrations before it becomes a problem.

• Steel alligator clip with lanyard loop
• Removable mount

In aviation, CO is commonly produced by equipment such as piston-driven aircraft, ground servicing equipment, and airside vehicles. Turbine engine aircraft exhaust and auxiliary power unit (APU) exhaust can also contribute to the accumulation of unsafe levels of CO. Being aware of the potential for carbon monoxide (CO) exposure and poisoning is crucial for eliminating safety hazards and preventing accidents.

The AV8 Inspector’s advanced sensor technology allows for accurate readings of carbon monoxide concentrations before it becomes a problem.

For purchasing information go to Carbon Monoxide Detectors.

Specifications:

• Measuring Range: 0-550ppm
• Resolution: 1ppm
• Accuracy: +/- 10% of reading at ambient conditions (0-500 ppm)
• Response time: (T90): < 20 seconds
• Size: ~3.2" x 2.2" x 0.9"
• Unit Weight: 4 ounces
• Battery Life: > 2 years (depending on alarm conditions)
• Battery Type: Panasonic CR123A
• Alarm setpoints: 35 ppm low, 2 - ppm high
• Alarm types: Visual LCD/LED, Audible Buzzer (80-85dB), and Vibrate Mode (vibrate in AV8 Inspector Pro model only)
• Temperature Range: -4 to +122°F (-20 to +50°C)
• Sensor Type: electrochemical

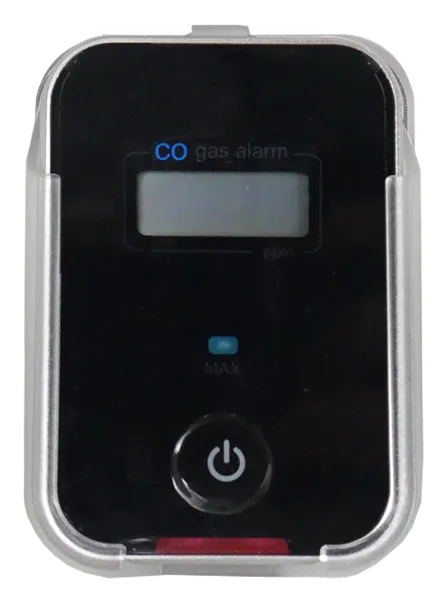

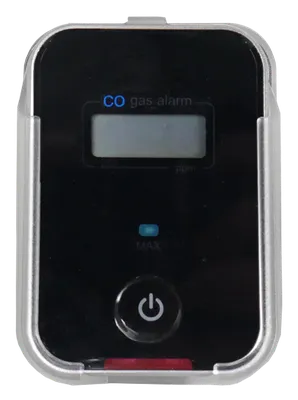

Forensics CO Detector and Alligator Clip Kit

Electric, portable CO Detector for aircraft or automobile

P/N CAR001 CO Detector and Alligator Clip P/N CAR001-ALLIGATOR also sold separately

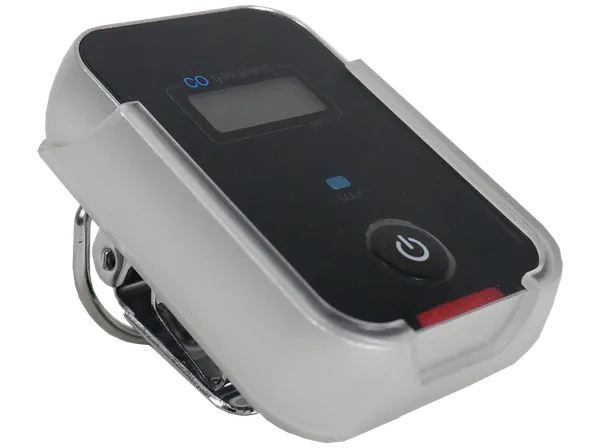

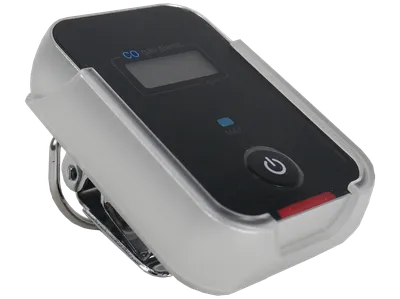

Save money with the CAR001-KIT - CO Detector and Alligator Clip set

Forensics CO Detectors are made with High-Quality Japanese sensor technology, and low-level alarming to prevent CO exposure from exhaust leaks or polluted air entering the aircraft. The CO alarms are set at 9 ppm with red LED and 25 ppm with audible buzzer sound (70 dB). Weighs only 2 oz. one button easy operation. Tested and confirmed at high altitudes for aircraft reliability.

CO Detector Specifications:

• Size: 69 mm x 47 mm x 20 mm (2.7 in x 1.9 in x 0.8 in)
• Weight: 50.8 g (1.8 oz) with housing 81.0 g (2.9 oz)
• Sensor Type: electrochemical sensor, made in Japan
• Battery: 2 x CR2032
• Battery life: 6 - 8 months on standby (depending on alarm conditions)
• Blue/Red LED: max level indicator/CO alarm indicator
• Buzzer: sound alarm, 70 dB at 1 meter
• Working temperature: -10°C to 50°C (14°F to 122°F)
• Working humidity: 15 - 90% RH
• CO detection range: 9 ppm to 999 ppm
• Resolution: 1 ppm with 0.5 secs averaging & refresh rate
• CO accuracy: +/- 10% of CO reading
• Lifetime: see detector for END OF LIFE date

Included with the CO Detector: 2 x CR2032 batteries installed, plastic sleeve mount, and instructions.

For purchasing information go to Carbon Monoxide Detectors.
