Door Hinges and Pins

Cabin Door Hinges

Cessna 170-175 series Aircraft

• Improved FAA-PMA approved McFarlane welded design
• Thicker alloy steel
• Heat-treated for extra strength and wear resistance
• Precision pin holes for longer life
• Pre-drilled and epoxy primed
• Straight or bent hinges available - check your aircraft to order the correct style

Door Hinges for late series Cessna aircraft also available, see below.

To order, go to Door Hinges and Pins.

Ensure the right fit for your Cessna!

Cessna legacy airplanes, built prior to 1979, feature a door post skin that angles inward (toward the front edge of the door). Aircraft with this bend require a hinge with a 5° bend for correct installation. Later models and new production aircraft do not have this inward angle and use a straight hinge.

McFarlane manufactures both bent and straight hinges. We HIGHLY recommend verifying your door hinges before ordering. When in the field, replicating the 5° bend from a straight hinge is very difficult and rarely correct. Let us take away the worry and provide you with the correct hinges today!

Note: McFarlane does not have exact serial number information as to when the hinges went from bent to straight.

Cabin Door Hinge Pins

Cessna 170-175 Series Aircraft

Don't trust those old brass pins!

• FAA-PMA approved design is 5x stronger with stainless steel
• Fast door removal — makes cabin maintenance easier!
• Easy to inspect
• Secure safety pin design

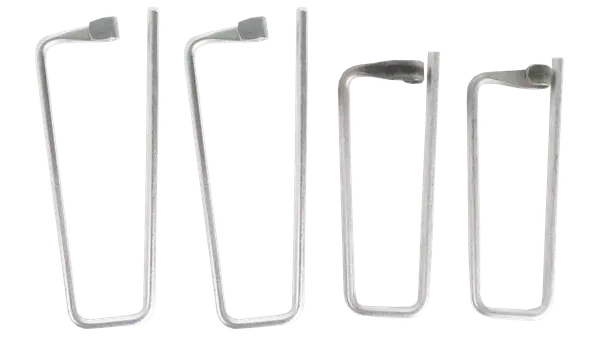

• Convenient kit available: Kit P/N CDHP-KT-1
  • 7205-1.63D, qty 1
  • 7205-1.63U, qty 1
  • 7205-2.00U, qty 2

Cabin and Cargo Door Hinges

Cessna 180-210 series aircraft

• FAA-PMA approved with improved machined design
• Better fit and form than competitor's forged hinges!
• Available drilled or un-drilled

To order, go to Door Hinges and Pins.

Quick Removal Clevis Pin and Cotter Key

Cessna 180-210 series aircraft

• FAA-PMA approved design replaces staked-in Cessna hinge pin
• New and improved design replaces staked-in hinge pin
• Easy door removal for maintenance
• Corrosion resistant
• Used for both cabin door and baggage door applications

To order, go to P/N MC0711038-1.
