3200 Scott Replacement Tailwheel Assembly
The ABI 3200/3400 Baby Bushwheel Tailwheel Assembly stands out as a robust and versatile replacement for traditional Scott 3400 tailwheels, making it an exceptional choice for aircraft operating in rugged backcountry environments. Designed to excel in demanding conditions such as gravel, river rock, and sand, this assembly is tailored to meet the unique challenges of off-airport landings and takeoffs.

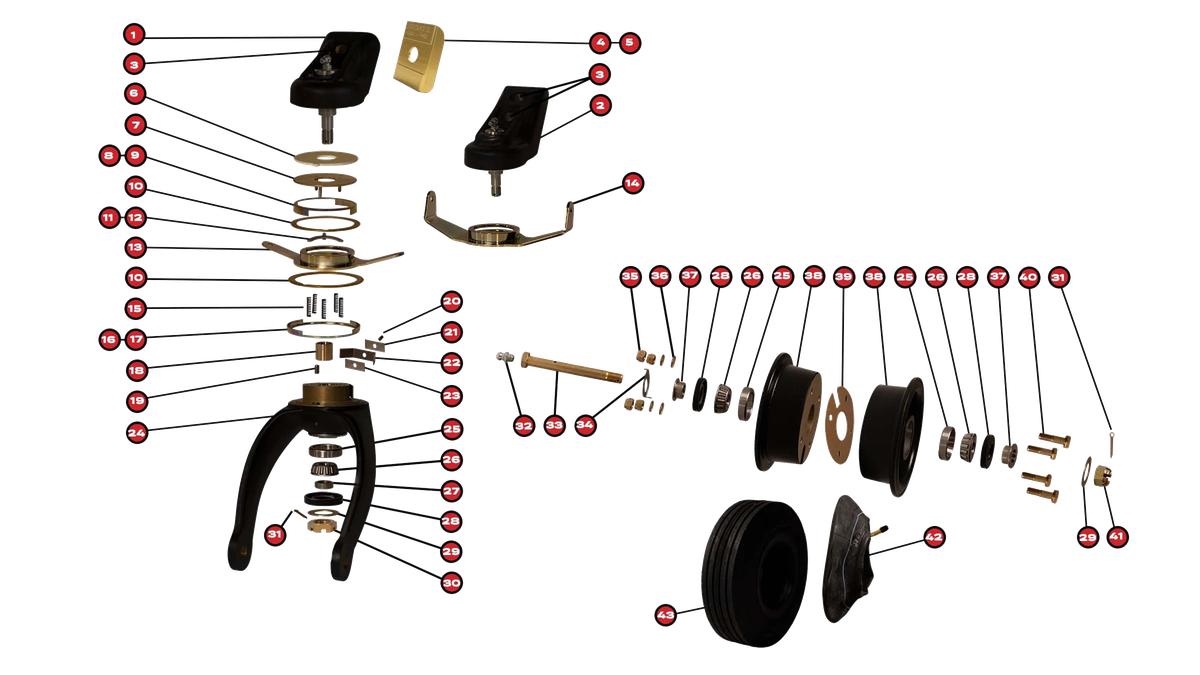

3200 Scott Replacement Tailwheel Assembly
| Diagram # | PN | Description |
| 1 | ABI-3216-00 | Tailwheel Head |
| 2 | ABI-800613 | 2 Bolt Tailwheel Head |
| 3 | ABI-3241-3S | Spacer |
| 4 | ABI-3243-01 | Leaf Spring Adapter 1 1/2" |
| 5 | ABI-3243-02 | Leaf Spring Adapter 1 1/4" |
| 6 | ABI-3207-00 | Fiber Thrust Washer |
| 7 | ABI-3234-00 | Thrust Plate Assembly |
| 8 | ABI-3235-02 | Dust Cap, Upper |
| 9 | ABI-3256-2 | Dust Cap, Upper |
| 10 | ABI-3206-00 | Thrust Washer |
| 11 | ABI-3219-02 | Long Pawl |
| 12 | ABI-3219-00 | Short Pawl |
| 13 | ABI-3214-00 | Straight Steering Arm Assembly |
| 14 | ABI-3214T | Bent Steering Arm Assembly |
| 15 | ABI-3233-00 | Compression Spring |
| 16 | ABI-3256-1 | Dust Cap, Lower |
| 17 | ABI-3235-01 | Dust Cap, Lower |
| 18 | ABI-3205-00 | Bushing |
| 19 | ABI-3257-00 | Pin |
| 20 | ABI-3258-00 | Spacer |
| 21 | ABI-3222-00 | Compression Spring |
| 22 | ABI-3258-01 | Spacer |
| 23 | ABI-232-046 | Dowel Pin |
| 24 | ABI-3224K | 8" Tailwheel Fork |
| 25 | A4138-20629 | Bearing Cup |
| 26 | A4050 | Cone Bearing |
| 27 | ABI-2504-01 | Spacer |
| 28 | ABI-1863 | Bearing Grease Seal |
| 29 | AN960-816 | Washer |
| 30 | AN320-8 | Shear Nut |
| 31 | MS24665-283 | COTTER PIN, 3/32" X 3/4" |
| 32 | T7201 | Zerk Fitting |
| 33 | ABI-3236 | Axle Bolt - Wide Fork |
| 34 | ABI-3225-00 | Tab Lock Washer |
| 35 | MS21044N4 | NUT (Nylon Lock) |
| 36 | NAS1149F0463P | WASHER, 1/4, Steel, .063 |
| 37 | ABI-3227-00 | Spacer |
| 38 | ABI-3244K | Wheel Half |
| 39 | ABI-2602 | Gasket |
| 40 | AN4-7A | Bolt, AN |
| 41 | AN310-8 | NUT |
| 42 | 280/250-4 | 4" Tire Tube |
| 43 | 280x250-4 | Std. 8" Tailwheel Tire |
