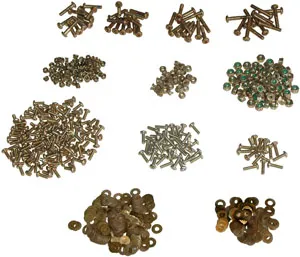

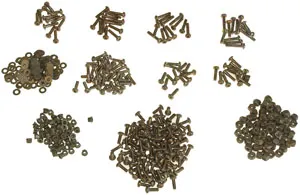

Seat Rail Screw and Rivet Kits

McFarlane offers either rivets or screws as convenient kits containing AN and MS hardware. Since it is difficult to install many of the rivets required to attach the seat rail, it is permissible to substitute screws with ultimate tensile strength exceeding 50 ksi with lock nuts provided the holes are ream fit and spotfaced. Each kit contains enough rivets or screws to install four seat rails.

FAA General Aviation Airworthiness Information Bulletin CE-90-03R2, 08/26/2002 Original Issue 01/16/1991

Note these recommendations:

1. When replacing a seat rail, note the number and location of all fastener holes on the seat rail being removed.
2. Match these holes against the holes in the replacement seat rail. If the replacement seat rail does not have all of the same holes at the same locations, they must be drilled.
3. Since it is difficult to install many of the rivets required to attach the seat rail, it is permissible to substitute screws with ultimate tensile strength exceeding 50 ksi.

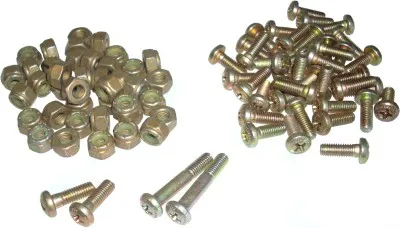

Example of such screws are AN515, AN520, AN525, MS35206, MS35207, MS35214, MS35215, MS35218, MS35219, MS51957 or MS51958 with lock nuts, provided the holes are ream fit and spotfaced.

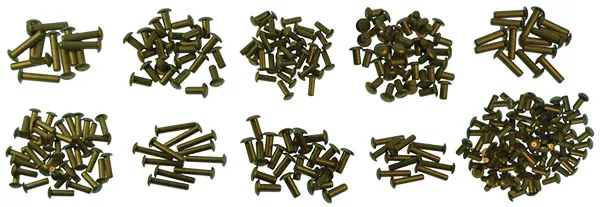

Seat Rail Rivet Kit

• Assortment of MS20470 1/8" and 5/32" universal head rivets
• Rivets meet Military Specification Standards for hardware.

For guidance on the replacement of fasteners, see FAA Special Airworthiness Information Bulletin CE-90-03R2.
