P/N: 500x5

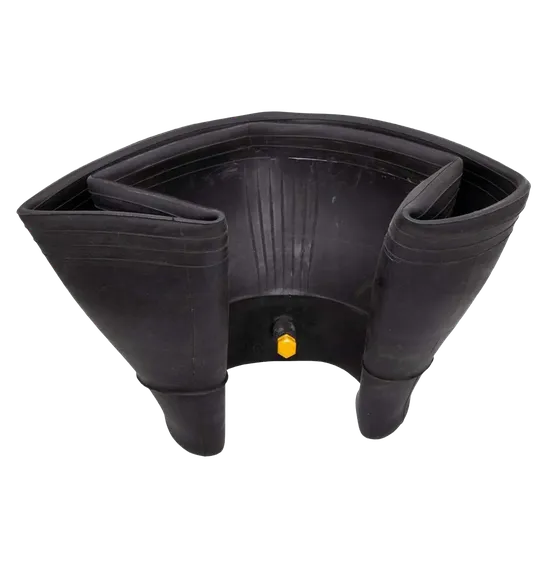

Goodyear Butyl Aircraft Inner Tubes

Goodyear butyl inner tubes are the trusted choice for general aviation aircraft, available in 500x5, 600x6, 700/800x6, and 650x10 sizes to fit the most common GA tire applications. Manufactured to Goodyear's QAI2525 quality standard and meeting MIL-I-5014 military specifications (except packaging), these tubes are built to rigid standards that meet or exceed all commercial and military performance requirements.

Features

• Butyl rubber construction for excellent air retention and pressure stability
• Meets Goodyear QAI2525 and MIL-I-5014 (except packaging)

Notes:

1. For multiple tire sizes listed, the tube is designed to fit correctly in all identified sizes. Some tube stretch is required for maximum performance
2. The nominal tube size reflects the minimum inflated outside tire dimensions and wheel diameter in which the tube will properly operate. O.D. =outside diameter at center line, width = overall tire width at the widest point, wheel dia = nominal diameter of wheel, tire bead, and tube opening)
3. Valve Shape: B = Bent, STR = Straight
4. Valve location is the distance the centerline of the valve is located from the centerline of the tube.
