P/N: 6420093-5

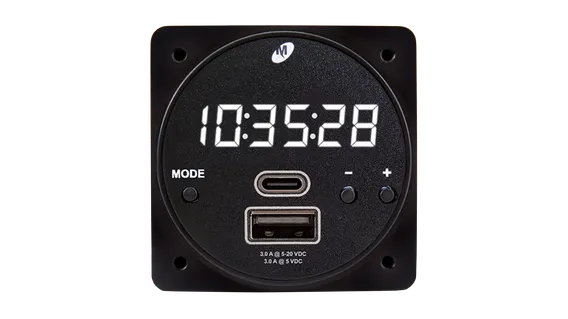

True Blue Power CHRONOS Digital Clock

Single and Dual USB Configuration 6420093 Chronos Series Digital Clock

Replace aging analog or limited-function digital clocks with the Mid-Continent CHRONOS Series Digital Clock and USB Charger. Combining a bright six-digit, seven-segment LED display with up to 8 operational modes and up to 75 watts of integrated USB charging power, the CHRONOS fits a standard 2¼-inch panel cutout and installs easily as a direct upgrade in virtually any cockpit. Models range from a clock-only unit to the CH93MAX with dual USB-A and USB-C PD ports.

All USB charging ports employ intelligent voltage negotiation for the fastest possible charge speeds. Designed with enhanced cybersecurity protocols, meaning no data is transferred between the unit and any connected device or aircraft system.

STCs are available for a wide range of aircraft. Certified to FAA-TSO C71, EASA-ETSO C71, and RTCA DO-160G.

Key Features:

• Up to 8 modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, and Secondary Air Temp
• Six-digit LED display: Seven-segment readout with selectable 12- or 24-hour format and seconds on/off
• Integrated USB charging: Up to 75W total output; compatible with Apple, Android, and other USB devices; USB-C PD port supports 5, 9, 15, and 20 VDC output via intelligent power negotiation
• CH93MAX USB-C PD + USB-A: The CH93MAX (6420093-5) pairs a 60W USB-C PD port with a 15W USB-A port for simultaneous full-power charging of two devices
• Cybersecurity-safe USB ports: No data transferred between the charger and connected devices, or between connected devices and aircraft systems
• STC available: STCs available for a wide range of aircraft makes and models; use the aircraft manufacturer dropdown on the product page to view applicable STCs
• Internal field-replaceable battery: Maintains Time and Flight Timer memory without aircraft power
• Dual brightness control: Automatic dimming via internal photocell, or manual control via external dimming bus voltage; programmable dimming curves
• Compact 2¼-inch form factor: Fits standard panel cutout; rear-panel mounted with four #6 screws
• Broad input voltage: Most models accept 10–32 VDC; CH93MAX requires 22–32 VDC
• Built-in protection: Short circuit, power surge, and over-current protection for both the unit and connected devices
• Certified: FAA-TSO C71, EASA-ETSO C71, RTCA DO-160G
• 2-year limited warranty

8 Modes: Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp
5 Modes: Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch
