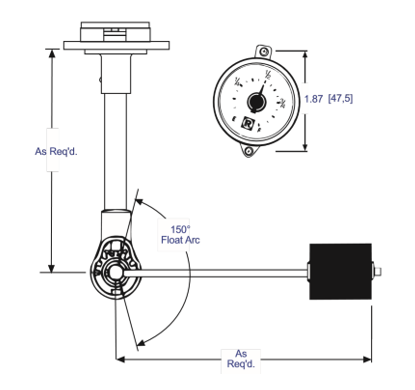

Rochester 6700 Series Magnetic Liquid Level Gauge
Top Mounting Magnetic Liquid-level Gauges
Built to the high standards of all Rochester designed instruments. The construction permits replacement of dials, when necessary, without releasing fumes or liquid to the atmosphere.
Dials are fractional and silicone dampened and are easily replaced by removing and reinstalling two screws. The gear drive incorporates shrouded, stainless-steel, beveled gears designed to work out any loose particles that might affect gear function. Sealing between the gauge and the tank is achieved with the 0015-00423 Buna-N gasket.
6781 has a small alnico magnet, with direct-reading dial only.
 |
Materials and Construction:
- Head: Diecast aluminum with standard SAE gasoline gauge flange (2 1⁄8"
- [54mm] bolt circle for five #10 screws, screws not furnished)
- Center shaft, Support Tube & Float Rod: Tempered aluminum.
- Gears, Cross Stud & Bearings: Stainless Steel
- Drive Magnet: Alnico
- Gear Housing: Acetal plastic or aluminum
- Float: Nitrile rubber
- Gasket: Buna-N, 0015-00423
- Direct Reading Dial: Hermetically sealed polycarbonate
- Side Reading Dial Aluminum with polycarbonate crystal, hermetically sealed
- Twin Site® Sender: Polyamide
