Part # 7083-00011
MECHANICAL FUEL GAUGE, 0400 1200
$118.51
Retail Price: $148.14
In Stock
In Stock
Product Details
Specifications
- Approval
- Condition
- New
- Manufacturer
- Rochester
- Dimensions
- L: 9.45 x W: 7.45 x H: 4.9 in
- Weight
- 0.5 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- 7083-00011
Product Description

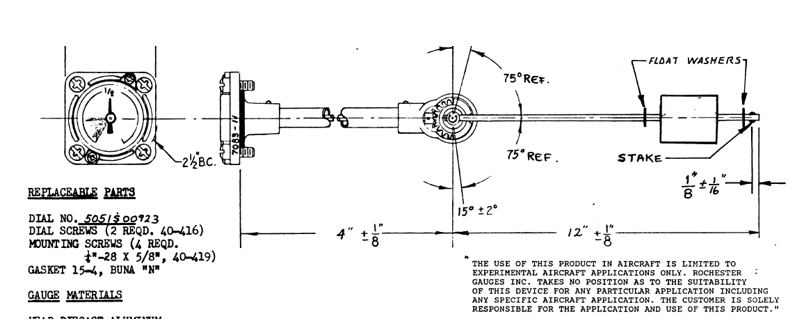

Rochester Mechanical Fuel Sender
Lever-action Gauge
Measures fuel level from full to empty on fractional dial.
Details:
- Matte white markings on 2" black dial with red "No Take-off" sector below the 1/4 full mark
- Nitrile float has 4" travel
- Wire arm 12" long (shipped loose) may be cut off to required length, may be wire bent to 90° angle to secure nitrile float otherwise stake float washers to secure float
- 1-13/16" between mounting hole centers
Hermetically sealed dial assembly has magnetically driven, silicone-damped or position pointer to prevent flutter.
 |
WARNING: Cancer and/or Reproductive Harm - California Proposition 65 Resources
FAQs
How do I keep contaminants out of my fuel system?
The fuel selector valve works in unscreened fuel. Contaminated fuel can cause selector valve seal damage. When fueling from possibly contaminated fuel sources McFarlane recommends the use of a fuel filter, such as Mr. Funnel or another filtering device, to reduce trash in the fuel system.
