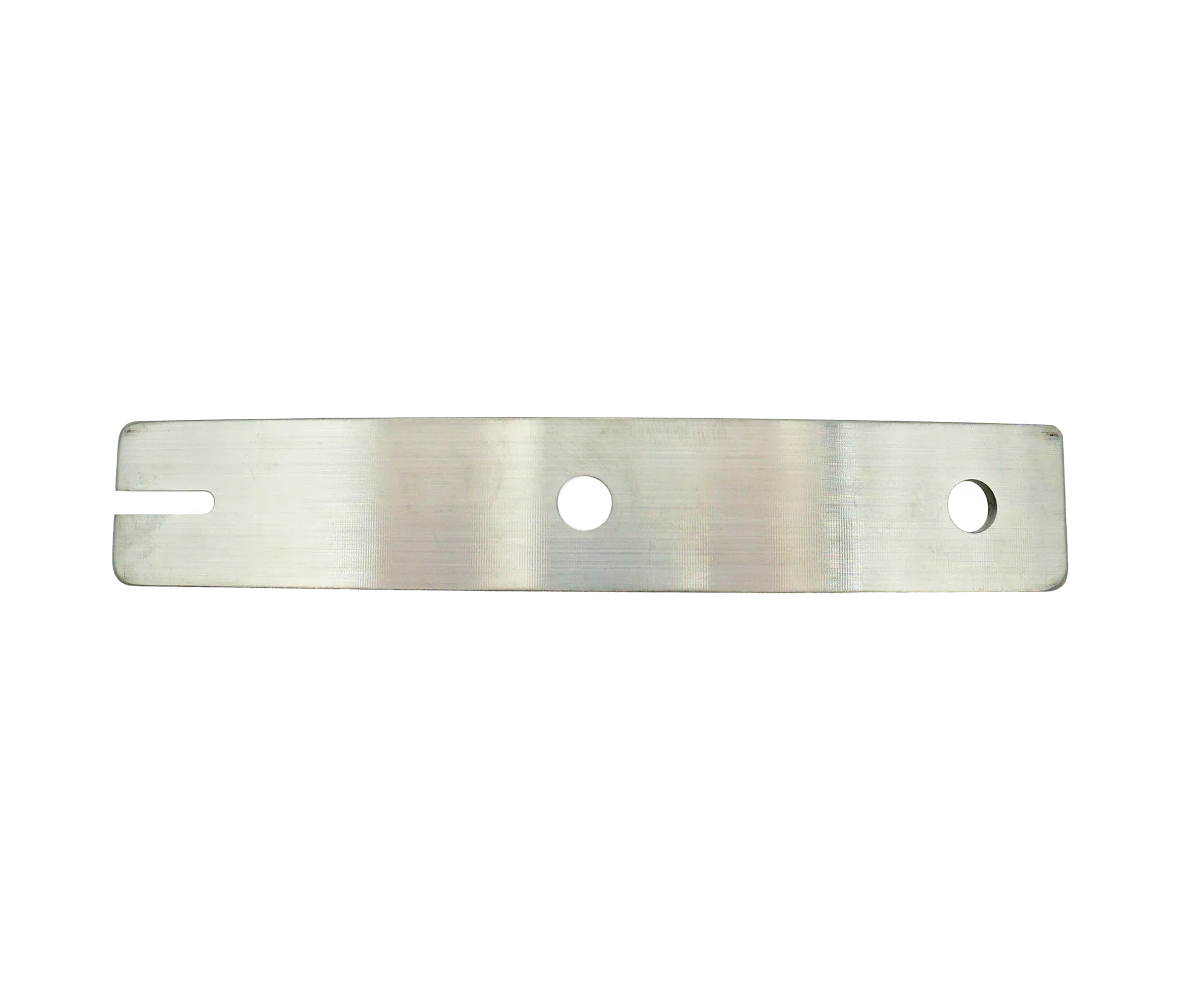

Part # AF9536741

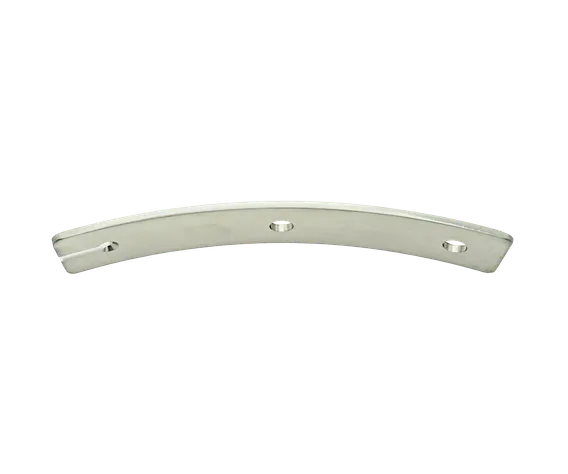

SPRING
Get everything you need
AF5006586
WHEEL ASSEMBLY, WITHOUT Drive Slots
$88,082.40 / was $162,952.44
Product Details
Specifications
- Approval
- FAA PMA
- Condition
- New
- Manufacturer
- Airforms
- Dimensions
- L: 4 x W: 4 x H: 4 in
- Weight
- 1 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- AF9536741
Product Description
Wheel Assemblies and Components
FAA-PMA approved for CASA aircraft
Complete assemblies or individual components available
- Finish-machined from forgings for high strength
- Speed sensor cut-out/drive slots are radiused to reduce cracking
- Outer wheel halves available with or without “speed censor cut-out/drive slots”
- Fraction of the cost of the OEM wheel
CASA brake disc also available! P/N AF5004272
Replacement cup and cone also available from Timken: P/N 39412-20629 (cup) and P/N 39250-20629 (cone).
| Figure # | Part Number | Description |
|---|---|---|
All |
Main Wheel Assembly, WITHOUT Drive Slots |
|
All |
Main Wheel Assembly, WITH Drive Slots |
|
1 |
Inboard Wheel Hub |
|
2 |
Outboard Wheel Hub WITHOUT Drive slots |
|
2 |
Outboard Wheel Hub WITH Drive slots |
|
3 |
Inboard Plunger/Tee |
|
4 |
Outboard Bearing Seal |
|
5 |
Inboard Bearing Seal |
|
6 |
Inboard Spring |
|
7 |
Inboard Ring/Disk Drive |
|
8 |
Washer (not sold separately |
|
9 |
MS21250-05036 |
High Strength Wheel Bolt (not sold separately) |
10 |
High Strength Nut, Self-Locking (not sold separately) |
WARNING: Cancer and/or Reproductive Harm - California Proposition 65 Resources
Eligible Aircraft
| Make | Model | Start S/N | End S/N | Eligibility Chart |
|---|---|---|---|---|
| CASA (EADS) C-212-CC | C-212-CC | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Eligibility Chart 6629 |
| CASA (EADS) C-212-CD | C-212-CD | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Eligibility Chart 6629 |
| CASA (EADS) C-212-CE | C-212-CE | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Eligibility Chart 6629 |
| CASA (EADS) C-212-CF | C-212-CF | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Eligibility Chart 6629 |
Cross Reference
Reference only: Please verify the product is eligible for your aircraft before adding to your cart.
-
9536741
