Part # EMB75050

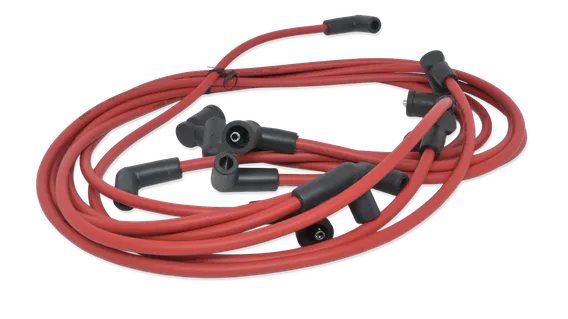

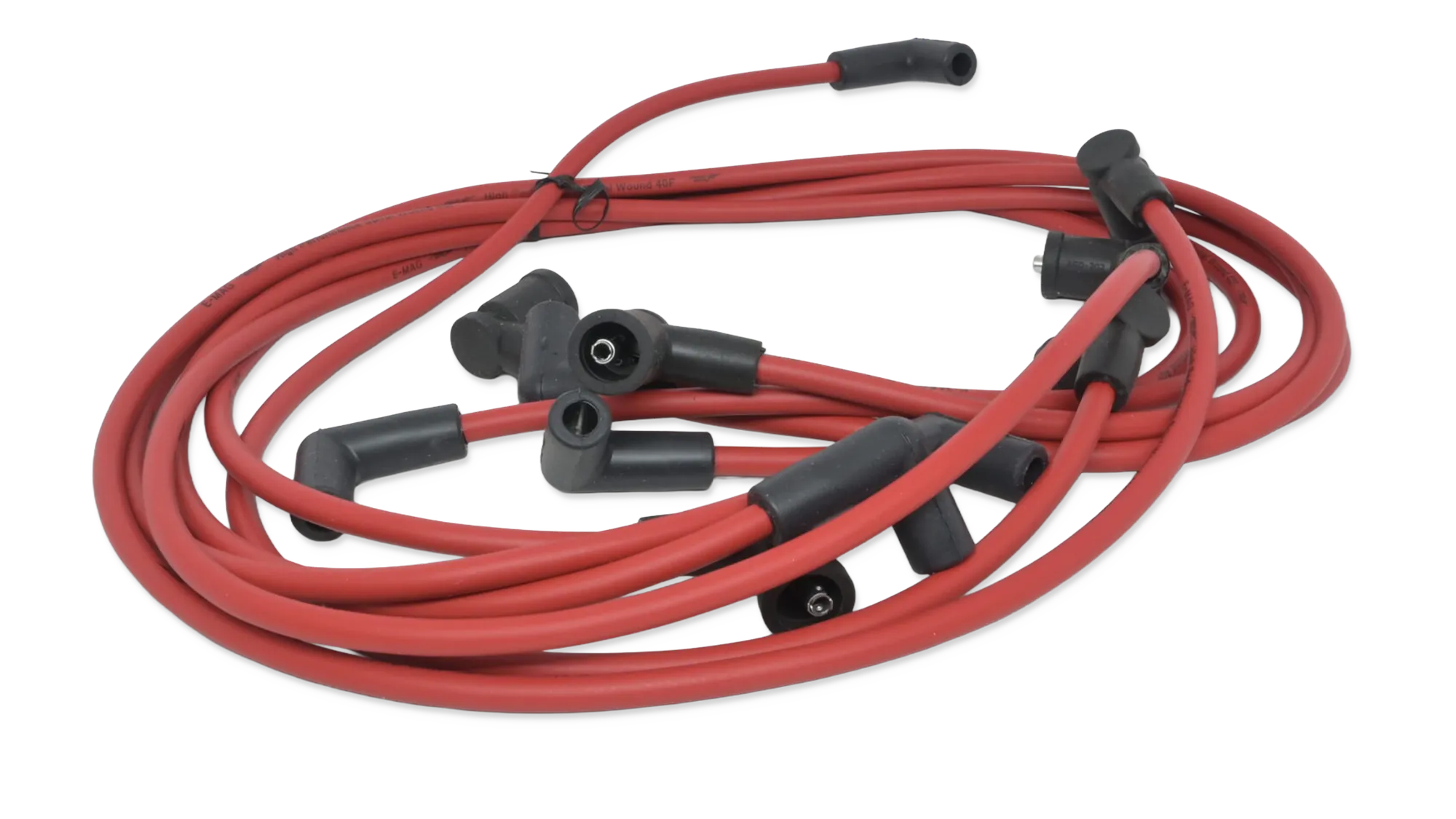

E-MAG HARNESS, IO-540 THUNDERBOLT
Product Details
Specifications
- Approval
- Condition
- New
- Manufacturer
- Hartzell Engine Technologies
- Dimensions
- L: 12 x W: 12 x H: 12 in
- Weight
- 5 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- EMB75050
Product Description
E-Magneto Plug Wire Harness
E-MAG Aircraft Ignition Harnesses
E-MAG low-noise, distributed-inductance plug wire harnesses are engineered specifically for use with E-MAG electronic ignition systems. These harnesses replace the traditional shielded aircraft ignition harness and are used with automotive-style spark plugs and E-MAG adapters. The custom wire construction uses a spiral-wound conductor around a Kevlar core for durability and long service life, with no shielding required. E-MAG's lead design produces no measurable radio noise when properly installed.
Features:
- Custom distributed-inductance, low-noise 8mm plug wire
- 90-degree or straight plug boot options to suit your engine configuration
- Spring-steel detent terminals snap-lock to coil towers and spark plug caps
- Nominal resistance: ~40 ohms/ft (newer "F40" wire) or ~180 ohms/ft (older wire)
- Annual ohm-check recommended; resistance check confirms conductor integrity
Harness Options:
- EMA75001: Standard 4-cylinder harness
- EMB75050: 6-cylinder harness configured for IO-540 Thunderbolt engines
- EMB75030K: 6-cylinder harness with straight plug boots
- EMB75020K: 6-cylinder harness with 90-degree plug boots
Do NOT bundle plug leads together. Inductive coupling can cause interference. Keep leads separated. Leads should be kept in good condition; plug "clicking" over the radio is a reliable indicator of a loose or worn connection.
Also Available:
- Complete Ignition Kits
- Adapter Kits
- Incident Kits
- Pre-assembled harness
