SIM4N_RIGHT_ELECTRONIC_MAGNETO_NON_IMPULSE_SUREFLY

SIM4N_RIGHT_ELECTRONIC_MAGNETO_NON_IMPULSE_SUREFLY

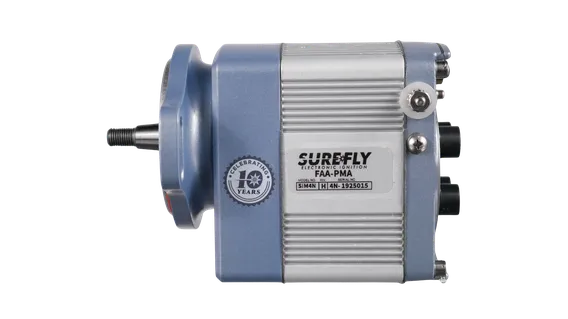

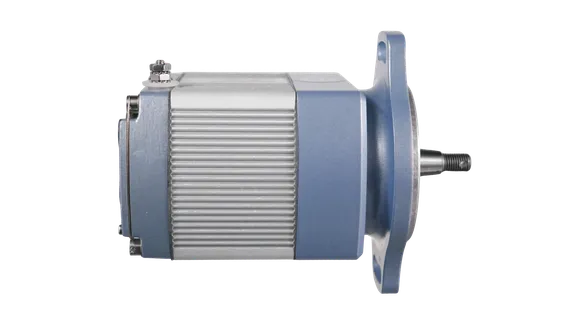

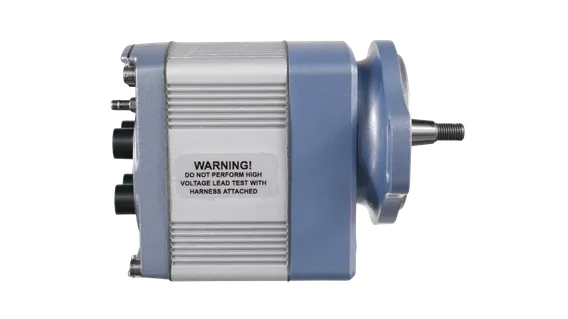

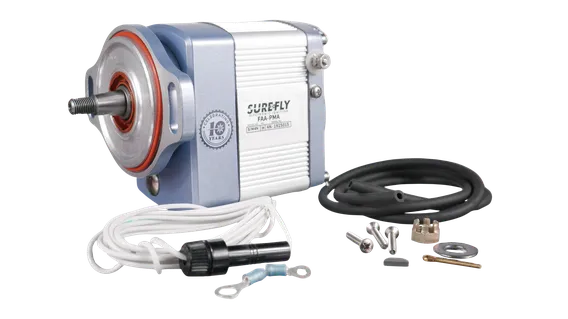

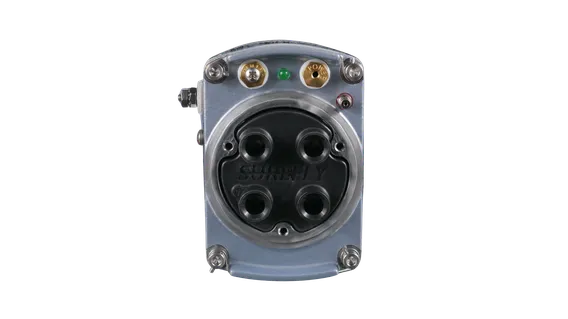

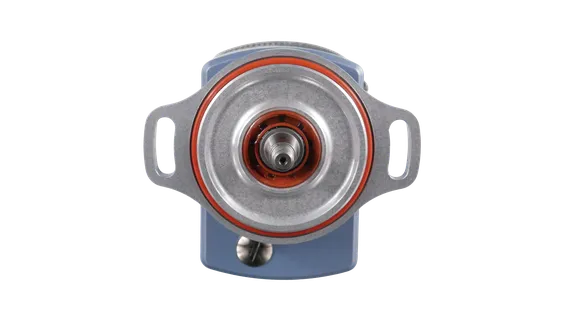

SIM4N, ELECTRONIC MAGNETO, NON-IMPULSE

Part # SIM4N

ELECTRONIC MAGNETO, NON-IMPULSE


$2,095.91
Retail Price: $2,619.91
In Stock

Explore Related Parts

TACHOMETER SIGNAL CONVERTER

$257.00 / was $321.25

In Stock

Product Details

Specifications

Approval
EASA STC (European Union), FAA PMA STC
Condition
New
Manufacturer
Surefly Electronic Ignition
Dimensions
L: 8 x W: 8 x H: 9 in
Weight
6 lbs
Unit of Measure
Each
McFarlane Part Number
SIM4N

Product Description

SureFly Magneto

4-Cylinder Impulse Coupled Mag Replacement
Replaces 4-cylinder non-impulse coupled magnetos on Lycoming and Continental engines.
Weight: 4.0 lbs

About SureFly:

SureFly is an FAA certified electronic (solid state) magneto replacement. The SureFly Ignition Module (SIM) replaces one magneto, generally the left or impulse-coupled/starting magneto on most aircraft engines. 4- and 6-cylinder SIMs are available for Lycoming and Continental engines.

Replacing just one traditional magneto eliminates magneto maintenance and cuts associated costs in half! Zero maintenance, zero rebuilds, and zero overhauls. Run it to 2,400 hours of SIM operation.

  • Delivers more consistent spark energy with higher accuracy!
  • 2,400-hour operating time, no 500-hour inspections
  • No mechanical parts that wear
  • Low power consumption
  • Up to 2lbs lighter than a Bendix magneto
  • Very easy to install!

FAA-STC approved for many Cessna, Piper, Beechcraft, Maule, Mooney, and more aircraft.

View complete application guide here.

Intelligent timing advance:

For non-turbocharged engines, SureFly controls spark advance up to 38º before TDC as determined by manifold pressure and RPM (engine power setting). Each engine's base timing advance is read off the data plate and set into the SureFly Ignition Module or, "SIM" at installation. The timing advance schedule is hard set at the factory, when the SIM is manufactured, to provide the highest possible combustion efficiency.

No mechanical points:

Not only are points and condensers a point of failure in magneto ignitions, so are rotors and caps as they carbon track and provide alternate paths to ground as resistance builds in the system. That's why SureFly utilizes none of these antiquated technologies. SureFly components are all solid state and industrial-grade electronics.

Note: Looking for backup batteries? We have EarthX batteries available.

WARNING: Cancer and/or Reproductive Harm - California Proposition 65 Resources

FAQs

What is a good core return?

A good core retunr for a factory overhauled Slick Magneto is going to be a current series 4300 or 6300 Slick Magneto. If a new Slick Magneto is purchased, then older series Slick Magnetos can be considered for credit on a case by case basis.

Does this Magneto come with an impulse?

Check the "Detail" tab of the Slick Magneto that you are interested in buying and the Slick Magneto listed with a "Type: Impulsed" will come up with an impulse coupling.

What are the possible bill backs that I can get on a core return for my Slick Magneto?

There are no bill backs on a core return that is a current series 4300 or 6300 Slick Magneto.

For a Slick Magneto what is the service time?

According to the Slick Magneto by Champion Overhaul Manual L-1363F, the magneto should be overhauled at TBO, lighting strike, prop strike, sudden stoppage of the engine and immersion of the aircraft.
