High Plains Tire Balancer

HPKK-001 Tire and Wheel Balancer

Easily balance a wide variety of aircraft wheels, from a 500-4 Ercoupe to a 35/11-18 Gulfstream main tire assembly. Works with tire and wheel assemblies up to 35" (889 mm) in diameter and 11" (280 mm) wide.
Made from high-grade aluminum for impressive strength, durability, and accuracy.

Features

• Compatible with tire and wheel assemblies up to 35" (889 mm) in diameter and 11" (280 mm) wide
• Lightweight aluminum structure
• Alloy steel balancing shaft with precision bearings
• Hard-anodized aluminum securing cones
• Easily disassembled for simple traveling and storage

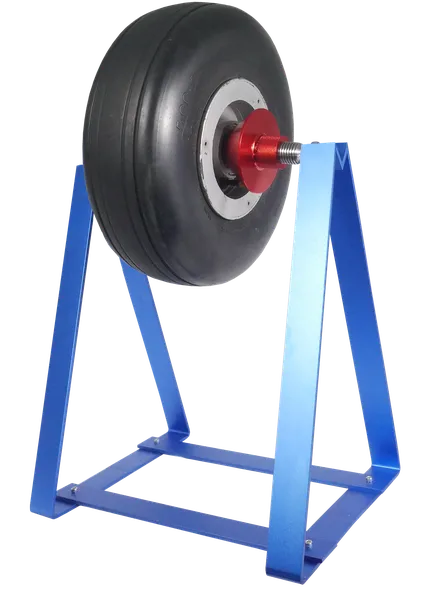

The tire/wheel assembly is placed on the balancing stand, using a 1" threaded rod, with two cones that are threaded. Each cone is snugged down on each right and left wheel race, which will bring the rod theoretically to the center of rotation. The rod assembly is equipped with frictionless bearings that are placed on a triangle stand. With the assembly in place, the tire/wheel assembly is spun to detect the static balance.

For faster setup, lower cost, and improved repeatability, check out the McFarlane Tire Balancer, engineered for greater precision and efficiency compared to traditional axle-style systems.
