What aircraft is the NANO Beacon eligible for?

It is intended for experimental category aircraft

What voltage and current does the NANO Beacon require?

It is available in 14V and 28V versions, drawing 0.33 A average / 1.2 A peak at 14 VDC and 0.18 A average / 0.6 A peak at 28 VDC.

What color and finish options are available?

Red or White LEDs paired with Black or Silver powder-coated housings, to complement a variety of aircraft configurations and exterior finishes

Can the NANO Beacon be paired with other AeroLEDs lights?

Yes, it can be synchronized with AeroLEDs NANO Wingtip lights for a coordinated lighting system.

What is the difference between the Pulsar NS and the Pulsar NSP?

The Pulsar NS has a forward red or green navigation light and a strobe that covers 180 degrees from each wing tip. The Pulsar NSP has a forward red or green navigation light, a strobe that covers 180 degrees from each wing tip, and a rear white position light.

What are the installation requirements for the SunSpot 36 and 46?

The SunSpot 36LX landing and taxi lights and SunSpot 46LX can be installed with just a log book entry if you can install the light in an existing mount and use the existing wires, switches, and circuit breakers. The SunSpot 36HX landing and taxi lights and SunSpot 46HX can be installed with the pulse function enabled in any model listed on the AML under STC, or in other aircraft models with a 337 that uses the AML STC as a basis for approval.

What are the installation requirements for the TSO lights?

If the lights are mounted to an existing mounting location with no structural modifications and existing wiring can be re-used, the lights can be installed with a log book entry. If there are modifications to the wiring, a 337 should be submitted for approval for the installation. If there are structural modifications made to mount the lights, a more extensive approval may be required, ranging from a 337 to an STC.

What is the recommended wire for the Pulsar and SunTail lights?

We recommend 3 conductor 20 gauge shielded single bundle wire.

Your Cart

Items

Total

Shipping and taxes calculated at checkout

Your Cart

0 Items

Total $0.00

Shipping and taxes calculated at checkout

View Full Cart Checkout

Home / Shop Parts ... / 01-2300-B1-12

NANO_BEACON_WHITE_BLACK_DROPSHADOW_Nano_Beacons_Experimental_AeroLEDs

WAT4-8-3594_coin_Nano_Beacons_Experimental_AeroLEDs

P/N: 01-2300-B1-12

Name: NANO BEACON, Strobe, White, 12V, EXP.
Brand: AeroLEDs
SKU: 01-2300-B1-12
Price: 349.99 USD
Availability: BackOrder

NANO BEACON, Strobe, White, 12V, EXP.

Jump to product details

Share this product:

Approval
Condition	New
Manufacturer	AeroLEDs
Dimensions	L: 4 x W: 4 x H: 2 in
Weight	1.5 lbs
Unit of Measure	Each
Retail Price	$388.49
Your Price	$349.99
Stock Status	Expected ship date is 08-26-2026. alternates Notify me when it's back in stock Email *

Alternates

Documents

FAQs

Potential Alternates

Image	Part #	Description	U/M	Retail Price	Your Price	Stock
	01-2300-B-12	NANO BEACON, Strobe, White, 12V, EXP.		$388.49	$349.99
	01-2300-A-12	NANO BEACON, Strobe, Red, 12V, EXP.		$388.49	$349.99

Frequently Asked Questions

Related Categories

Product Details

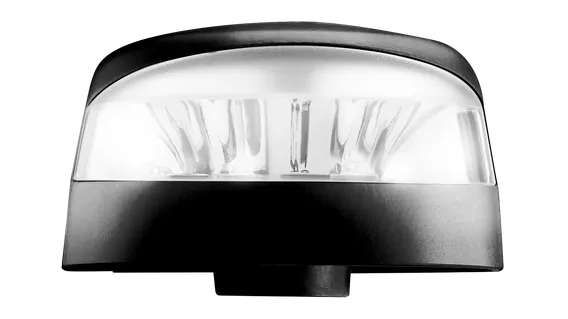

AeroLEDs NANO Beacon

NANO Beacon for Experimental Aircraft

The AeroLEDs NANO Beacon is a compact, high-output LED anti-collision light designed for experimental aircraft and UAV/UAS applications where installation space, weight, and available electrical powers are limited.

Its small footprint allows installation in locations that are not practical for traditional beacon systems, making it an excellent choice for new installations or as a supplemental anti-collision light. High-intensity LED technology provides improved aircraft recognition while maintaining a low power consumption and a lightweight, low-profile design.

Available with red or white LEDs and black or silver powder-coated housings, the NANO Beacon complements a variety of aircraft configurations and exterior finishes. It can also be synchronized with AeroLEDs NANO wingtip lights to provide a coordinated lighting system.

Specifications:

Weight: 0.09 lbs.
Dimensions: 1.58" L x 1.58" W x 0.88" D
Voltage: 14V and 28V

AMP Draw:

14 VDC: 0.33 A (average), 1.2 A (peak)
28 VDC: 0.18 A (average), 0.6 A (peak)

Part Number	Voltage	Base Color	Light Color
01-2300-A-12	14 V	Silver	Red
01-2300-A-24	28 V	Silver	Red
01-2300-A1-12	14 V	Black	Red
01-2300-A1-24	28 V	Black	Red
01-2300-B-12	14 V	Silver	White
01-2300-B-24	28 V	Silver	White
01-2300-B1-12	14 V	Black	White
01-2300-B1-24	28 V	Black	White
