| Approval | EASA TSO, FAA TSO |
| Condition | New |
| Manufacturer | Mid‑Continent Instruments & Avionics |
| Dimensions | L: 2 x W: 3 x H: 3 in |
| Weight | 0.1 lbs |
| Unit of Measure | Each |
| Retail Price | $528.33 |
| Your Price | $422.67 |
| Stock Status | Out of Stock alternates |
Potential Alternates
| Image | Part # | Description | U/M | Retail Price | Your Price | Stock |
|---|---|---|---|---|---|---|
 |
6430202-15 | USB CHRGR, Dual A/A, 15W/3A, Rear, Light | $528.33 | $422.67 |
|
|
 |
6430202-5 | USB CHARGER, Dual A/A, 15W/3A, Rear | $528.33 | $422.67 |
|
|
 |
6430202-6 | USB CHARGER, Dual A/A, 15W/3A, Bttm | $528.33 | $422.67 |
|
Related Documents
Related Videos
Related Categories
Product Details

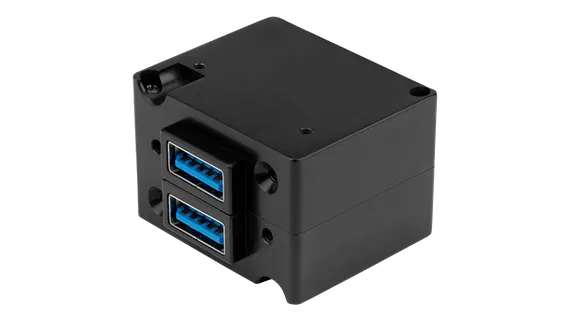

True Blue Power TA202 Series High Power USB Charging Ports
Single and Dual USB Configuration 6430202 Charging Ports
True Blue Power’s high power TA202 Series chargers simultaneously provide 15 watts / 3 amps of power per charging port to electronic devices.
Pilots and passengers stay charged and connected with TA202 Series charging ports. Single and dual USB-A and USB-C configurations provide 15 watts/3 amps of power per port, while leaving a small footprint in the panel or cabin wall. The easy to install chargers require no external power converters for 10-32VDC applications.
Certified to FAA-TSO C71, EASA-ETSO C71, CAAC CTSO C71, and RTCA DO-160G, the TA202 Series is the proven, versatile USB charging solution for general aviation, commercial, and international aircraft operators.
Key Features:
- 15W / 3A per port: Full rated power delivered to one or two devices simultaneously, no power sharing
- Broad input voltage range: Operates on 10–32 VDC with no external power converter required, compatible with a wide range of aircraft electrical systems
- USB-A and USB-C options: Available in USB-A only, USB-C only, or combined USB-A / USB-C dual-port configurations
- Lighted and non-lighted variants: Choose the configuration that best fits your installation
- Rear and bottom power input options: Flexible installation for in-seat, panel, and cabin wall mounting
- Built-in protection: Short circuit, power surge, overload, and over-temperature safeguards
- Compact, lightweight design: Single unit weighs only 0.8 oz (23 g) with a minimal panel footprint
- Anodized aluminum case: Durable black anodized housing built for the aviation environment
- Certified: FAA-TSO C71, EASA-ETSO C71, CAAC CTSO C71, RTCA DO-160G
- Limited Lifetime Warranty
| Non-Lighted Part Number | Configuration | Input |
|---|---|---|
Dual USB-A / USB-C |
Rear |
|
Dual USB-A / USB-C |
Bottom |
|
Dual USB-C |
Rear |
|
Dual USB-C |
Bottom |
|
Dual USB-A |
Rear |
|
Dual USB-A |
Bottom |
|
Single USB-C |
Rear |
|
Single USB-C |
Bottom |
|
Single USB-A |
Rear |
|
Single USB-A |
Bottom |
| Lighted Part Number | Configuration | Input |
|---|---|---|
Dual USB-A / USB-C |
Rear |
|
Dual USB-A / USB-C |
Bottom |
|
Dual USB-C |
Rear |
|
Dual USB-C |
Bottom |
|
Dual USB-A |
Rear |
|
Dual USB-A |
Bottom |
|
Single USB-C |
Rear |
|
Single USB-C |
Bottom |
|
Single USB-A |
Rear |
|
Single USB-A |
Bottom |
| Technical Spec | Detail |
|---|---|
Output Power |
15 W per port |
Output Voltage |
5 VDC ± 0.25 per port |
Output Current |
3.0 A per port |
Input Power |
18 W per port (maximum) |
Input Voltage |
10 – 32 VDC |
USB Connector |
USB-A and/or USB-C; single and dual configurations |
Certifications |
FAA TSO C71, EASA ETSO C71, CAAC CTSO C71, RTCA DO-160G |
Weight – Single |
0.8 oz (23 g) |
Weight – Dual |
1.3 oz (38 g) |
Dimensions – Single |
1.5"W × 0.52"H × 1.25"D |
Dimensions – Dual |
1.5"W × 1.03"H × 1.25"D |
Mating Connector Kit |
MCI P/N 9017960 (included) |
Case Material |
Anodized aluminum, black |
Mounting |
Front or rear; faceplates and adapter plates available |
Applications |
In-seat, cabin, cockpit, galley |
Warranty |
Limited Lifetime Warranty |
