Product Details

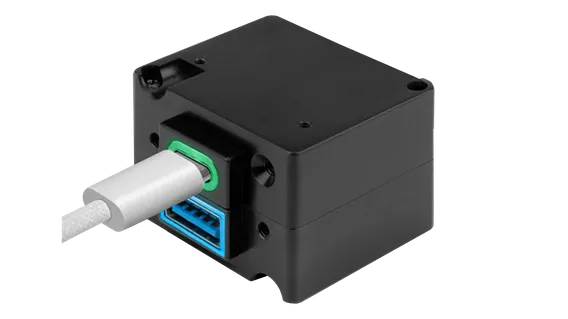

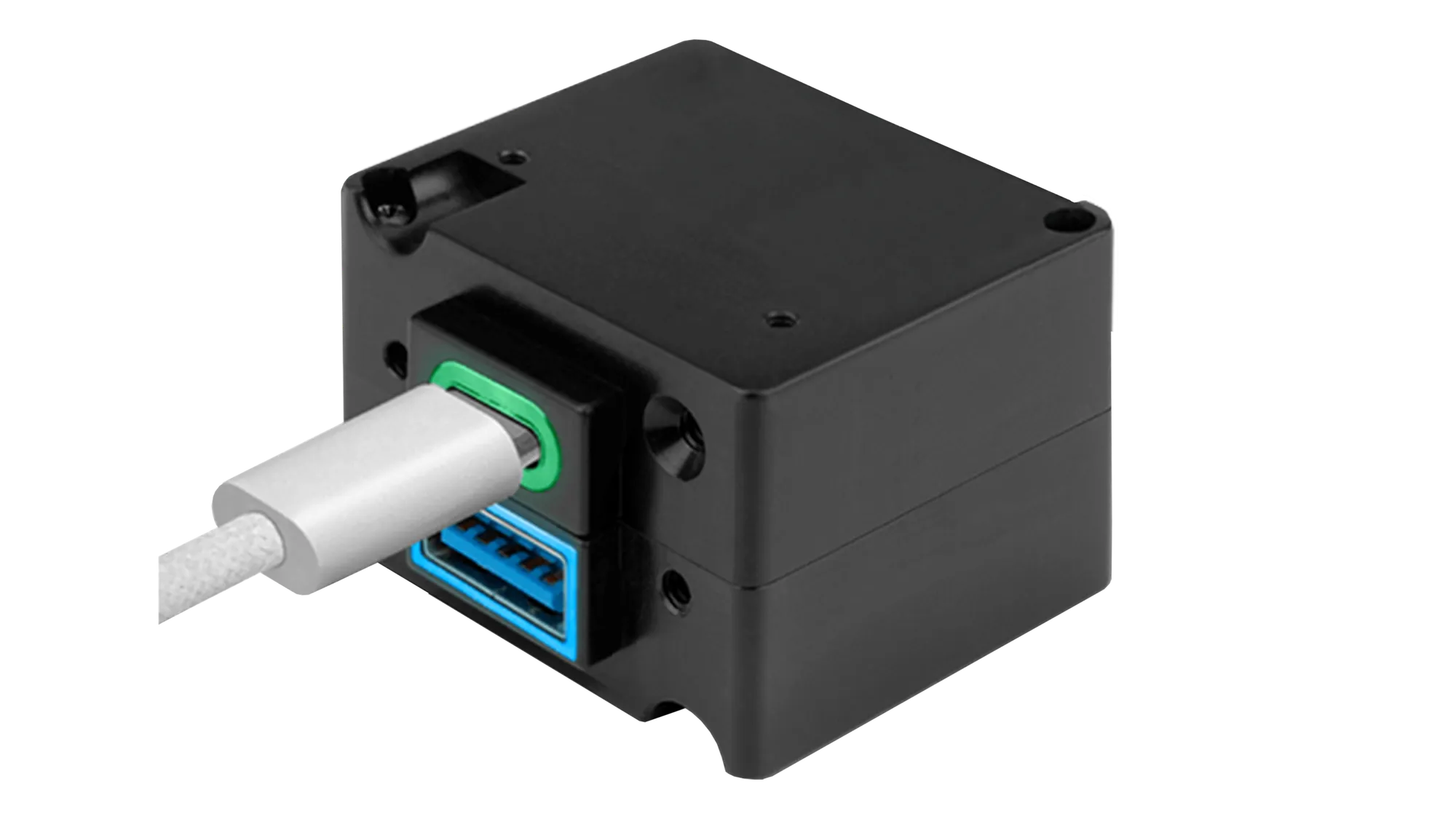

True Blue Power TA245 Series 45-Watt USB Chargers
Single and Dual USB Configuration 6430245 Chargers
Designed with the latest power delivery (PD) and programmable power supply (PPS) charging technology. Compatible with 14V and 28V systems, they deliver up to 45 watts of power per port.
PPS functionality allows the TA245 chargers to dynamically adjust voltage in small increments, optimizing power delivery based on the device’s specific needs. This ensures a faster, more efficient charge and extends the device’s battery life.
Featuring Smart Halo Lighting to see charging status at a glance!
Mating connector kit included.
Key Features:
- 45W USB-C / 36W USB-A output: Full power to both ports simultaneously, no compromise
- USB Power Delivery 3.0 & PPS 3.0: Dynamically adjusts voltage in fine increments for faster, more efficient charging and longer device battery life
- Qualcomm® Quick Charge™ 3.0: Compatible with QC 3.0-enabled devices on both USB-C and USB-A ports
- Smart Halo Lighting: LED ring provides instant status indication for power, active charging, and fault conditions, manual lighting control also available
- Dual-voltage compatible: Operates on 12–32 VDC, suitable for both 14V and 28V aircraft electrical systems
- Built-in protection: Short circuit, power surge, overload, and over-temperature safeguards
- Anodized aluminum case: Lightweight, durable black anodized housing; single unit weighs only 0.9oz (26g)
- Certified: FAA-TSO C71, EASA-ETSO C71, RTCA DO-160G
- Limited Lifetime Warranty
| Part Number | Configuration | Input |
|---|---|---|
Dual USB-A / USB-C |
Rear |
|
Dual USB-C |
Rear |
|
Single USB-C |
Rear |
| Technical Spec | Detail |
|---|---|
Output Power (USB-C) |
45 W max per port |
Output Power (USB-A) |
36 W max per port |
Output Voltage (USB-C) |
3.3 – 20 VDC at up to 3.0 A per port |
Output Voltage (USB-A) |
3.6 – 12 VDC at 3.0 A per port |
Output Current |
3.0 A per port |
Input Power |
52 W max per port |
Input Voltage |
12 – 32 VDC |
Charging Technology (USB-C) |
PD 3.0, PPS 3.0, Qualcomm® QC 3.0, BC 1.2 |
Charging Technology (USB-A) |
Qualcomm® QC 3.0, BC 1.2 |
Certifications |
FAA TSO C71, EASA ETSO C71, RTCA DO-160G |
Weight – Single |
0.9 oz (26 g) |
Weight – Dual |
1.8 oz (52 g) |
Dimensions – Single |
1.5"W × 0.52"H × 1.25"D |
Dimensions – Dual |
1.5"W × 1.03"H × 1.25"D |
Case Material |
Anodized aluminum, black |
Mounting |
Front or rear; faceplates and adapter plates available |
Applications |
In-seat, cabin, cockpit, galley |
