Is the MD835-1 a direct replacement for the Jet PS-835?

Yes. The MD835-1 is a direct form, fit, and function replacement for the L-3 Avionics / Jet PS-835 Series, using the same 1/4 ATR rack mount and 13-pin ARINC-style connector. No rack or wiring modifications are required.

What maintenance does the MD835-1 require?

A pre-flight remote self-test should be performed before each dispatch. A full capacity verification is required every 24 months. After any in-flight use of the emergency power supply, a full capacity check should be performed before returning the unit to service.

How do I perform the pre-flight self-test on the MD835-1?

With the unit armed, press and hold the TEST position on the panel-mounted switch. A green TEST annunciation confirms the unit has a minimum of 80% capacity available and that the internal heater and temperature monitoring are operational. If the test fails, remove the unit, recharge it, and perform a full capacity verification before flight.

Can I perform the capacity check in the field?

The capacity check requires a bench power supply capable of 5A constant voltage output and an electronic load. Apply 28 VDC to the input, apply a 4.5A constant current load to the output, remove input power, and confirm the unit sustains output for a minimum of 48 minutes. Full procedure is in Section 4.4.3 of the installation manual.

What happens if the MD835-1 fails the capacity check?

If the unit fails to sustain 48 minutes of output at 4.5A, it must be removed from service. The internal cells are not user-replaceable. Contact True Blue Power for overhaul, exchange, or replacement

Does the MD835-1 require external cooling?

No. The unit requires no internal or external cooling. It incorporates internal thermal monitoring and protection circuits and is designed to operate across a wide temperature range

Can the MD835-1 be installed in any location in the aircraft?

The unit must be installed in a 1/4 ATR avionics rack. It should not be installed adjacent to fuel lines, tanks, flammable fluids, engine firewalls, or sources of ignition. Avoid locations subject to standing or direct water exposure. The optional vent kit (P/N 9017983) is recommended for installations in poorly ventilated compartments

What connector does the MD835-1 use?

The MD835-1 uses a 13-pin ARINC-style connector. The correct mating connector is ITT Cannon DPXB-13-33S-0001 or equivalent. McFarlane stocks MCI P/N 9016600-2 as the compatible mating connector for the MD835-1.

Your Cart

Items

Total

Shipping and taxes calculated at checkout

Your Cart

0 Items

Total $0.00

Shipping and taxes calculated at checkout

View Full Cart Checkout

Home / Shop Parts ... / MD835-1

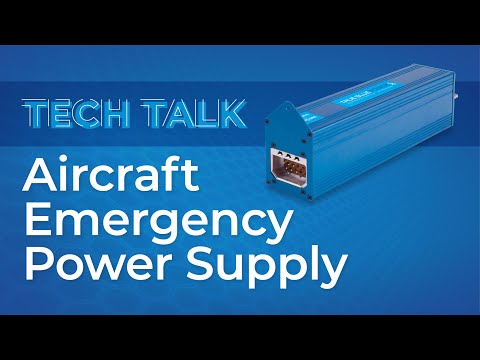

Tech Talk: Aircraft Emergency Power Supply Operation

P/N: MD835-1

Name: EMERGENCY BATTERY POWER SUPPLY
Brand: Mid‑Continent Instruments & Avionics
SKU: MD835-1
Price: 5912.0 USD
Availability: BackOrder

EMERGENCY BATTERY POWER SUPPLY

Jump to product details

Share this product:

Approval	EASA STC (European Union), FAA PMA STC
Condition	New
Manufacturer	Mid‑Continent Instruments & Avionics
Dimensions	L: 3 x W: 4 x H: 13 in
Weight	5 lbs
Unit of Measure	Each
Retail Price	$7,390.00
Your Price	$5,912.00
Stock Status	Expected ship date is 09-15-2026. alternates

Cross Reference

Alternates

Documents

FAQs

Videos

Potential Alternates

Cross Reference

Reference only: Please verify this product is appropriate for your use case before adding to your cart.

OEM Part Number	McFarlane Part Number	Comment
PS835	MD835-1

Frequently Asked Questions

Related Categories

Product Details

Emergency Battery Power Supply

MD835-1 True Blue Power TS835 Power Supply | Direct Replacement for the Jet PS835 Series

Automatically provide your aircraft with 24.5 VDC power to keep critical or standby equipment running in the event of power failure. Featuring proprietary lithium-ion technology, the TS835 is 60% lighter than competing units and is a direct replacement for the Jet PS835 Series. The unit recharges during normal flight operations and offers up to 4.5 amp-hours of power.

Note: Cockpit Self-Test Switch, P/N 9017176, or an equivalent part is required for installation.

Key Features

Automatically provides 24.5 VDC power for critical or standby equipment in the event of aircraft power failure
4.5 amp-hour lithium-ion battery
Utilizes proprietary lithium-ion technology, an energy storage solution with superior safety and abuse tolerance compared to metal oxide lithium-ion chemistries
Maintains full charge by recharging during normal flight operations
Lightweight, 63% lighter than legacy lead-acid designs
Direct replacement for L-3 Avionics/JET PS-835 (same rack mount and connector)
Two-year maintenance schedule
8-year (average) life expectancy
Five-year limited warranty

Technical Specification	Detail
Capacity	4.5amp-hour battery nominal
Input Voltage	20-32 VDC, 5.2amps max
Output Power	24.5 VDC nominal, 20amps max
Weight	4.8lbs
Dimensions	12.7″L x 2.4″W x 3.1″H
Battery Life Expectancy	8 years (avg)
Protection	Factory replaceable fuse
Matting Connector	DPXB13-33S-00001
Rack Mount Installation	¼ ATR rack
Optional Vent Kit	9017983
Remote Test Switch	9017176
Case	Anodized aluminum, blue
Certification	FAA TSO-C179b, Class A-3B RTCA-DO-160F/G qualified RTCA-DO-311A qualified
