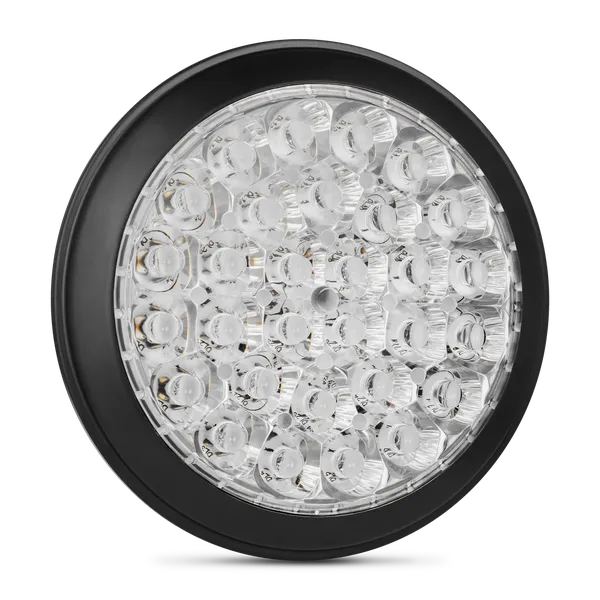

AeroLEDs Sunspot 56-4000 LED Landing Light
AeroLEDs Sunspot 56-4000 LED Landing Light
Experimental Landing Light SunSpot 56 Series
Designed for efficiency, the SunSpot 56 series consumes less power, delivers more lumens, and is vibration resistant. Installation is seamless with the standard PAR56 mounts and existing electrical connections.
Produces superior illumination with enhanced ground visibility and air recognition from up to 30 miles away. The wider beam and aviation white color temperature provides exceptional color rendering, ensuring vivid, true-to-life illumination.
-H Model Features:
- Built-in pulse (wig-wag) mode for enhanced recognition, aiding in collision avoidance and reducing bird strikes
- Self-contained pulse controller reduces electrical load by 50% in multi-light installations
- Optional synchronization for advanced operational capabilities
Specifications:
- Power Consumption: 175 watts max
- Color Temperature: Aviation white for exceptional rendering
- Lifespan: 30,000+ hours MTBF
- Lens: UV-hard coated polycarbonate
- Construction: Aluminum with black powder-coated heat sink
- Mounting: Standard PAR56 compatibility
- Thermal Protection: Built-in for durability
- Max Current: 10.2A@14VDC, 6.3A@28VDC
- Weight: 1.8 lbs
- Length: 6.9" Width: 6.9" Depth: 1.9"
- Click here to view the data sheet
| Part Number | Voltage | Candela | Beam Profile | Wig-wag |
|---|---|---|---|---|
14V |
180,000 |
20º x 20º |
No |
|
28V |
180,000 |
20º x 20º |
No |
|
14V |
250,000 |
20º x 20º |
Yes |
|
28V |
250,000 |
20º x 20º |
Yes |
Part No. 01-2240-4540
Retail Price: $1,048.95
Your Price: $945.00
Part No. 01-2240-4540-H
Retail Price: $1,165.50
Your Price: $1,050.00
Part No. 01-2240-4541
Retail Price: $1,048.95
Your Price: $945.00
Part No. 01-2240-4541-H
Retail Price: $1,165.50
Your Price: $1,050.00
