Universal Controls

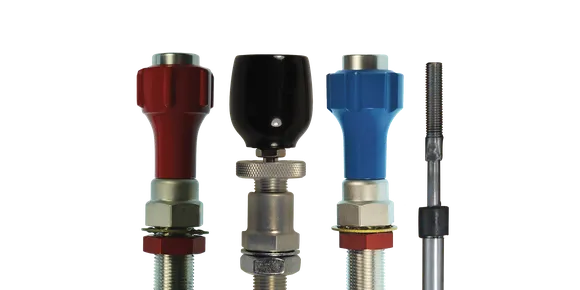

Noncertified Standard Length Push-Pull and Quadrant Style Aircraft Controls
Various options available for throttle, propeller, and mixture applications.
- Perfect for noncertified, homebuilt, and experimental aircraft!
- Standard configurations available: 48 inch, 60 inch, and 72 inch lengths
- Stocked assemblies reduce lead time compared to custom controls
- Built to the same standards as McFarlane certified controls
- High quality materials and tight tolerances
- Drastically outlasts typical noncertified control options
- Standard configurations fit most common installations
| 48" Part Number | 60" Part Number | 72" Part Number | Knob Type | Travel Length | Panel Nut Thread Size | Handle Colors |
|---|---|---|---|---|---|---|
Friction Lock |
3-3/8" |
1/2 x 20 x .8" |
Black |
|||
Friction Lock |
3-3/8" |
3/4 x 16 x 1" |
Black |
|||
Friction Lock |
3-3/8" |
1/2 x 20 x .8" |
Black |
|||
Friction Lock |
3-3/8" |
3/4 x 16 x 1" |
Black |
|||
Friction Lock |
2-1/8" |
1/2 x 20 x .8" |
Black |
|||
Friction Lock |
2-1/8" |
3/4 x 16 x 1" |
Black |
|||
Quadrant |
3-3/8" |
|||||
Quadrant |
3-3/8" |
|||||
Quadrant |
1-7/8" |
|||||
Vernier |
3-3/8" |
3/4 x 16 x 1" |
Red |
|||
Vernier |
3-3/8" |
3/4 x 16 x 1" |
Red |
|||
Vernier |
2-1/8" |
3/4 x 16 x 1" |
Red |
|||
Vernier |
3-3/8" |
3/4 x 16 x 1" |
Blue |
|||
Vernier |
3-3/8" |
3/4 x 16 x 1" |
Blue |
|||
Vernier |
2-1/8" |
3/4 x 16 x 1" |
Blue |
Shop all universal control options:
Maintenance tip:
Create your part number using our unique identifying system. Each part number will begin with MCG. The following letters and numbers indicate the type of control: “T” indicates throttle, “P” indicates propeller, “M” indicates mixture, and “Q” indicates quadrant. The base part numbers to follow will indicate specific attributes of the control, including its inner cable, travel length, conduit terminal, and panel nut thread size:
XXXX
X - - - Inner cable (1 = EC17) (2 = EC44)
- X - - Push rod options (1 = longer minimum travel length of 3.375") (2 = shorter min travel of 2.125" for throttle, mixture, and prop; 1.875" for quadrant)
- - X - Conduit terminal (1 = unthreaded) (2 = threaded)
- - - X Panel bolt options (0 = no panel bolt) (1 = 3/4-16 threads on all except the throttle controls where 1 = 1/2-20 and 2 = 3/4-16)
For example, P/N MCGT1112-48.000
- “T” indicates throttle
- Its inner cable is EC17 (1XXX)
- Its travel length is 3-3/8” (X1XX)
- The conduit terminal is unthreaded (XX1X)
- The panel nut thread size is 3/4 x 16 x 1" (XXX2)
- The length of this throttle control is 48”
