Please verify that this product is eligible for your aircraft before adding it to your cart.
Click here to view product eligibilityShare this product:
| Approval | |
| Condition | New |
| Manufacturer | Hartzell Engine Technologies |
| Unit of Measure | Each |
| Retail Price | $1,851.95 |
| Your Price | $1,481.56 |
| Stock Status | Pre-Order Notify me when it's back in stock |
| Approval | |
| Condition | New |
| Manufacturer | Hartzell Engine Technologies |
| Unit of Measure | Each |
| Retail Price | $1,851.95 |
| Your Price | $1,481.56 |
| Stock Status | Pre-Order Notify me when it's back in stock |
Please verify that this product is eligible for your aircraft before adding it to your cart.
Click here to view product eligibilityShare this product:
Supersedures
Please verify that this product is eligible for your aircraft before adding it to your cart.
Related Documents
Related Videos
Frequently Asked Questions
Eligible Aircraft
| Make | Model | Start S/N | End S/N | Eligibility Chart |
|---|---|---|---|---|
| Lycoming | LTO-360-E1A6D | 0 | ZZZZZZZZZZZZZZZ | 7797 |
| Lycoming | TO-360-E1A6D | 0 | ZZZZZZZZZZZZZZZ | 7797 |
| Lycoming | TEO-540-A1A | 0 | ZZZZZZZZZZZZZZZ | 7797 |
| Lycoming | TIO-540-AE2A | 0 | ZZZZZZZZZZZZZZZ | 7797 |
| Lycoming | TIO-540-AF1A | 0 | ZZZZZZZZZZZZZZZ | 7797 |
| Lycoming | TIO-540-AF1B | 0 | ZZZZZZZZZZZZZZZ | 7797 |
| Lycoming | TIO-540-AG1A | 0 | ZZZZZZZZZZZZZZZ | 7797 |
Eligibility Chart 7797 Notes
Related Categories
Product Details
AeroForce V-Band Clamp
Replacement for Many Continental and Lycoming Turbo Engines
FAA-PMA approval pending. AD 2023-09-09 placed a 500-hour life limit and repetitive inspection requirements on spot-welded turbo v-band clamps. Traditional clamps suffer from spot weld cracks (primary FAA AD failure mode), rivet fatigue, corrosion, and heat fatigue in high-temp exhaust environments. AeroForce v-band clamps provide a tight, continuous seal at the exhaust-to-turbo flange and are not subject to this AD, eliminating the life-limit and inspection burden on affected aircraft.
Design has been proven through 400+ hours of engine and OEM validation testing, plus in-flight trials. The clamps use the same installation process as current clamps, with 50-hour torque check, followed by inspections aligned to engine TBO.
Key Advantages:
- Braided wire cable plus a floating retainer for improved load distribution and durability
- Weld-free, rivet free construction to eliminate legacy weak points
- Not subject to AD 2023-09-09
| Engine | Engine Model | Old P/N | AeroForce P/N | Airframe | Notes |
|---|---|---|---|---|---|
Continental |
TSIO-360-RB, LTSIO-360-RB |
670105, 646434, 653337 |
Piper PA-34-220T Seneca V |
670105 does not appear in IPC, however part noted supersedes to 670105 |
|
Continental |
TSIO-360-MB, TSIO-360-SB |
670105, 646434, 653337 |
Mooney M20K-252 |
670105 does not appear in IPC, however part noted supersedes to 670105 |
|
Continental |
TSIO-520-BE |
670105, 646434, 653337 |
Piper PA-46-310P |
670105 does not appear in IPC, however part noted supersedes to 670105 |
|
Continental |
TSIO-550-C |
670105, 646434, 653337 |
Textron LC41-550FG, T240 |
670105 does not appear in IPC, however part noted supersedes to 670105 |
|
Continental |
TSIO-550-G |
670105 |
Mooney M20TN/M20V |
||
Continental |
TSIO-550-K |
670105 |
Cirrus SR22T |
||
Lycoming |
LTO-360-E1A6D |
LW-12093-8 |
Piper PA-44-180T |
||
Lycoming |
TEO-540-A1A |
40D21162-340M |
Tecnam P2012 Traveler |
40D21162-340M does not appear in IPC |
|
Lycoming |
TIO-540-AE2A |
40D23255-340M |
Piper PA-46R-350T, |
||
Lycoming |
TIO-540-AF1A, |
40D21162-340M |
Mooney M20M |
Coupling 40D21162-340M was removed via SB M20-283A and AD2024-23-17. Aircraft will have 40D23255-340M Installed |
|
Lycoming |
TIO-540-AG1A |
40D21162-340M |
Commander 114TC |
Coupling 40D21162-340M was removed via SB 113-33A and AD2000-11-04. Aircraft will have 40D23255-340M Installed |
|
Lycoming |
TO-360-E1A6D |
LW-12093-8 |
Piper PA-44-180T |
Improve Airflow and Cooling
From hose and ducting to engine baffles and seals:

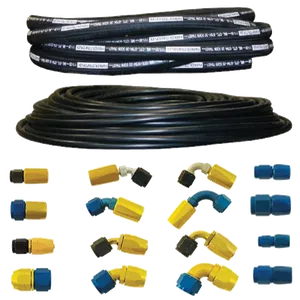

Hose and Ducting
