Home / Shop Parts / EMB04201-B

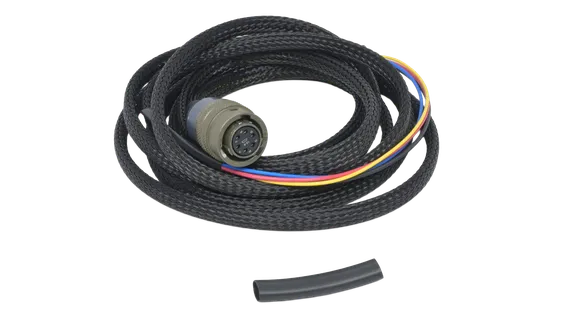

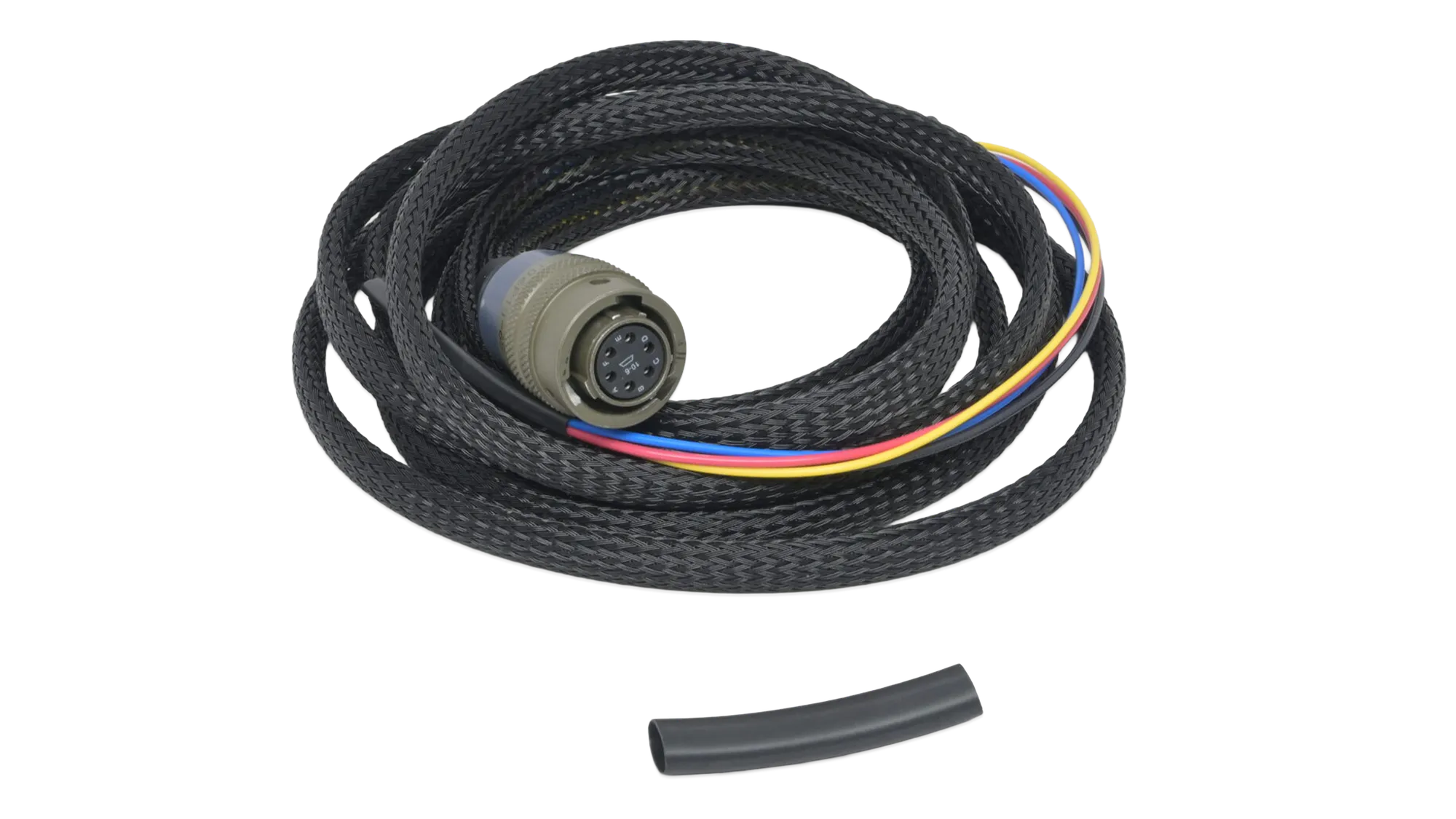

EMB04201-B_Hartzell_Aviation_E-Magneto_Parts

P/N: EMB04201-B

Name: E-MAG HARNESS, 96", POTTED CIR. PLUG
Brand: Hartzell Engine Technologies
SKU: EMB04201-B
Price: 152.39 USD
Availability: BackOrder

E-MAG HARNESS, 96", POTTED CIR. PLUG

Jump to product details

Share this product:

Approval
Condition	New
Manufacturer	Hartzell Engine Technologies
Dimensions	L: 12 x W: 12 x H: 12 in
Weight	5 lbs
Unit of Measure	Each
Retail Price	$190.49
Your Price	$152.39
Stock Status	Expected ship date is 07-28-2026.

Documents

FAQs

Frequently Asked Questions

Related Categories

Product Details

E-Magneto Plug Wire Harness

E-MAG Aircraft Ignition Harnesses

Pre-assembled E-MAG control harnesses with pre-wired circular connectors for simplified installation. These harnesses eliminate the need to solder individual control wires to the standard circular plug, making them an ideal choice for new installations or when replacing an existing harness.

EMB04201-B: 96" color-coded pigtail leads, straight, potted circular Mil connector
EMB04201-B90: 96" color-coded pigtail leads, 90-degree boot configuration, potted connector
EMB04401-1: Potted circular plug with standard pigtail configuration

Wire Color Code:

Red (Pin A) — Bus power (14V–28V)
Black (Pin B) — Cockpit ground
Yellow (Pin E) — Kill switch / P-lead
Blue (Pin F) — Tachometer output (3 PPR)
Pins C & D — Not used

The potted connector is approximately 1/2" shorter than the standard solder-cup connector, which can be advantageous in tight accessory case installations.
