Andair Precision Aircraft Components

Andair Fuel Components

Now offering check valves, fuel selectors, gascolators, and locking fuel caps for experimental aircraft!
1/2" and 3/8” FS20 and FS25 valves

Prevents inadvertent fuel shut off
Smooth action between each tank selection
Incorporates safety features

Extension tubes, kits, and universal joints also available!

Description	Part Number	Fittings	Size	# of Positions
FS20 Fuel Selector	FS20X1-F	Female - All	1/4 NPT	2
FS20 Fuel Selector	FS20X1-M	Male - All	AN6, JIC-6	2
FS20 Fuel Selector	FS20X2-F	Female - All	1/4 NPT	3
FS20 Fuel Selector	FS20X3-F	Female - All	1/4 NPT	3
FS20 Fuel Selector	FS20X4-F	Top/LH Female, Lower Male	1/4 NPT, AN6, JIC-6	3
FS20 Fuel Selector	FS20X4-M	Male - All	AN6, JIC-6	3
FS20 Fuel Selector	FS20B4-M	Top/LH Male, Lower Banjo	AN6, JIC-6, AN-6	3
FS20 Fuel Selector	FS20X7-T	Left/Right Elbow Male, Lower Male	AN6, JIC-6	3
FS20 Duplex Fuel Selector	FS20-20-D2-6M	Male - All	AN-6, JIC-6	3
FS25 Duplex Fuel Selector	FS25-20-D2-6M	Male - All	Lower Inlet, LH/RH Tank: AN-8, JIC-8 Lower Outlet to Engine: AN-8, JIC-8 Upper Outlet to LH/RH Tank: AN-6, JIC-6 Upper Inlet from Engine: AN-6, JIC-6	3

Upgrade a standard FS20 or FS22D2 Andair fuel selector valve with an extension!
Kits are supplied with a 6" piece of tube

Description	Part Number
Extension Kit (includes 6” tube)	EXK-5-6
Extension Tube 6”	ET-6
Extension Tube 12”	ET-12

P/N EXK-5-6 Kit Components:
Extension Cap
6” piece of extension tube
Upper Drive Spindle

Note: the handle plate assembly coupled with the large lever allows for detents to exist on the upper section and provides the safety feature where the red button on the lever must be raised to switch OFF the fuel.

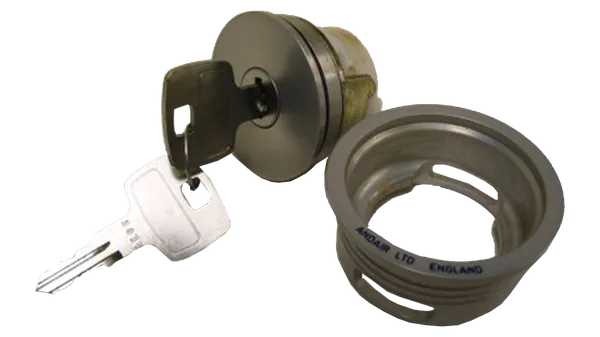

Check valves, gascolators, and locking fuel caps also available from Andair.

For ordering information, go to Fuel Selector Valve Assemblies

Fuel Selector Valve Assemblies

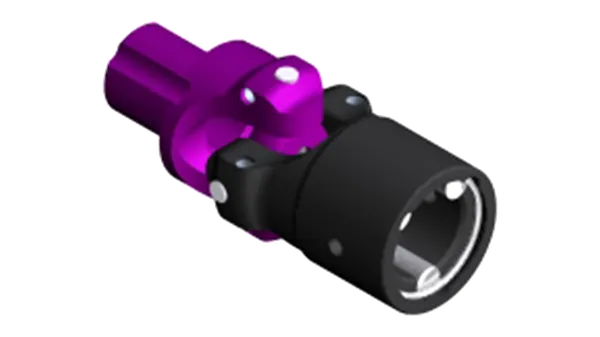

Andair Universal Joint

P/N UJA-2
Works in conjunction with Andair’s specially extruded extension rod to allow mounting of fuel valves at an angle to the control level. 30 degrees maximum angle.

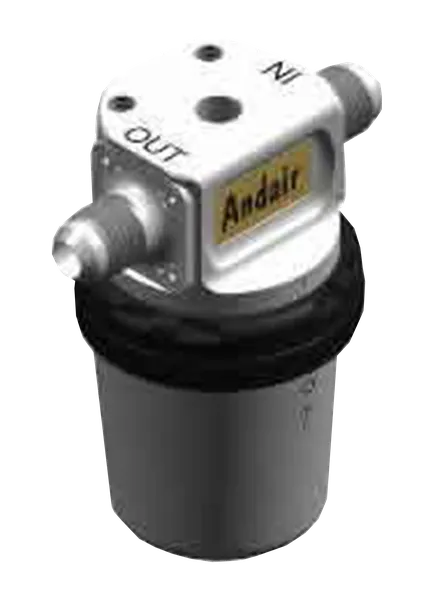

Andair Gascolator

P/N GAS375-M

Easy to mount! Either on the back of the gascolator or on the top using 1/4 UNF tapped holes.

Includes a screw locking ring that can be wire locked to prevent the bowl from detaching. The bowl is internally sealed with a Viton (R) O-ring with a PTFE coated 70-micron stainless steel mesh used as the filter screen.

The PTFE coating helps prevent water from passing by maintaining it as a droplet formation. A large filter area is present with wide passages to keep the pressure loss through the Gascolators at a minimum. There is a 1/8 NPT hole on the bottom of the bowl (so it can be drained) and one on the top of the body.
