Stabilizer Jack Screw Actuator Kit

Stabilizer Jack Screw Actuator Kit

Improved material for extreme corrosion resistance

McFarlane replaces the original steel components with duplex stainless steel (even better than monel) components for a long life.

  • Wear and vibration resistance for longer life
  • No rust, even in harsh saltwater environments
  • Costs less than the standard parts

Now improved with a Black Max™ nitrocarburized screw assembly to reduce friction and extend service life!

Ultra-precision bearing with no backlash

Improved Bearing
Precision bearing reduces free play and features extra low temperature grease for easy turning at low temperatures.

Improved Strength and Reliability

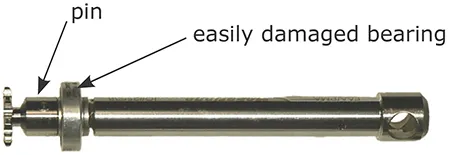

The original Cessna actuators use a 3/32" roll pin to attach the sprockets and retaining collars to the screw bars. These pins are critical as the front of the stabilizer would detach from the airframe if they failed. Although the original roll pins are technically strong enough, due to the nature of roll pins, they are prone to unpredictable failure. This is especially true if they are bent or damage during installation. To provide a more robust design, McFarlane redesigned the sprocket and retaining collar to allow the use of a 5/32" roll pin. This more than doubles the strength of the design. The screw and barrel are match machined for a precision fit.

Convenient Kit
Stabilizer jack screw actuator kit part number 1111 is an FAA-PMA/STC approved kit to replace all wear components for the stabilizer actuator assemblies for many Cessna 180, 182 and 185 aircraft. The convenient kit includes all parts required to replace the following Cessna parts in both the left-hand and right-hand actuators:

  • 0310332 Sprocket
  • 0432138-3 or S2295-25-185 Chain
  • 0712500-7 Collar-retainer
  • 0712500-10 Bushing
  • 0712500-11 Screw bar
  • 0712500-13 Barrel
  • 0712500-19 Plug
  • 0712502 Bushing, eccentric
  • MS20201KP6A or AN201KP6A Bearing
  • NAS561-3-8 Roll pin

Replacement Components
Part number 1111 contains the following replacement components:

  • 6361 Roller chain
  • 6464 Connecting link
  • 6458 Upper bushing
  • 6459 Lower bushing
  • 6460 Bearing
  • 6461 Spring pin (can only be used as a replacement with McFarlane p/n 1111)

Instructions for Continued Airworthiness
