Part # APS66-10800-8K
APS BRAKE LINING KIT, 8PK
$142.95
Retail Price: $178.69
In Stock
In Stock
Included Components (2 Part Types)
Details
Price / Qty
Buy
$0.30/each
Kit includes 16
In Stock
Sold in quantities of 25
$15.00/each
Kit includes 8
In Stock
Product Details
Specifications
- Approval
- Kit with Approved Contents
- Condition
- New
- Manufacturer
- APS
- Dimensions
- L: 1 x W: 4 x H: 6 in
- Weight
- 2 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- APS66-10800-8K
Product Description

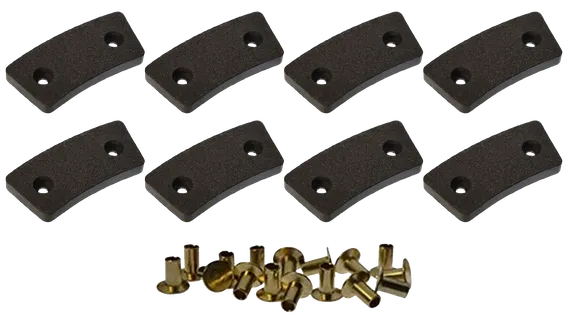

APS Brake Lining and Rivet Kits
Complete Brake Relining Solutions Specific For Your Aircraft Application
Brake linings and rivets packaged together for easy ordering and installation. Choose APS brake linings for the greatest stopping power and long lining life. Made with Kevlar fibers integrated into the materials. The optimal operating temperature is 600-900 deg F. and can be used with APS discs or other PMA or OEM discs.
- Preconfigured kits combining APS brake linings with APS105-00200 brake rivets
- Built around specific aircraft brake assemblies and configurations
- Supports full brake relines without the need to source components separately
- Perfect for scheduled maintenance and overhauls
Note: Eligibility depends on the wheel, brake, and aircraft make, model, and serial number
What’s included:
- APS brake linings: selected for the applicable brake configuration
- APS brake rivets: (P/N APS105-00200) matched to lining installation requirements
| Kit Part Number | Brake Linings Included in the Kit | Brake Lining Qty Included in the Kit | Rivets Included in the Kit | Rivet Qty Included in the Kit |
|---|---|---|---|---|
APS66-10500 |
4 |
APS105-00200 |
8 |
|
APS66-10500 |
8 |
APS105-00200 |
16 |
|
APS66-10600 |
4 |
APS105-00200 |
12 |
|
APS66-10600 |
8 |
APS105-00200 |
24 |
|
APS66-10800 |
8 |
APS105-00200 |
16 |
|
APS66-10800 |
12 |
APS105-00200 |
24 |
|
APS66-11100 |
4 |
APS105-00200 |
12 |
|
APS66-11200 |
4 |
APS105-00200 |
8 |
|
APS66-10900 |
4 |
APS105-00200 |
8 |
|
APS66-10900 |
8 |
APS105-00200 |
16 |
Brake discs, rivets and pins also sold separately. APS linings can be used with any OEM or PMA discs.
Warning:
One of the most important factors in disc and lining performance and safety margins is proper break-in. In order for any brake system to work optimally, the disc and linings must be properly bedded. Please follow the break-in procedures upon installation. Lining Break-In Procedures
WARNING: Cancer and/or Reproductive Harm - California Proposition 65 Resources
Eligible Aircraft
| Make | Model | Start S/N | End S/N | Comment | Eligibility Chart |
|---|---|---|---|---|---|
| Air Tractor AT-300 | AT-300 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-67X | Eligibility Chart |
| Air Tractor AT-301 | AT-301 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-89 | Eligibility Chart |
| Air Tractor AT-302 | AT-302 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-89 | Eligibility Chart |
| Air Tractor AT-400 | AT-400 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98C | Eligibility Chart |
| Air Tractor AT-400A | AT-400A | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-89 | Eligibility Chart |
| Air Tractor AT-401 | AT-401 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-234, Brake Assembly P/N 30-184 | Eligibility Chart |
| Air Tractor AT-401A | AT-401A | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-234, Brake Assembly P/N 30-184 | Eligibility Chart |
| Air Tractor AT-402 | AT-402 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98C | Eligibility Chart |
| Air Tractor AT-501 | AT-501 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98C | Eligibility Chart |
| Air Tractor AT-503 | AT-503 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98C | Eligibility Chart |
| Air Tractor AT-503A | AT-503A | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98C | Eligibility Chart |
| Air Tractor AT-502 | AT-502 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98C | Eligibility Chart |
| Cessna A188B | A188B | S/N 18800833 – 18802348 | 18802348 | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-67A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A188B | A188B | S/N 18802349 – 18803521 | 18803521 | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-67A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A188B (w/ large hopper) | A188B (w/ large hopper) | S/N 18800833T – 18802348T | 18802348T | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-67A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A188B (w/ large hopper) | A188B (w/ large hopper) | S/N 18800833T – 18802348T | 18802348T | Comment Wheel Assembly P/N 40-101A, Brake Assembly P/N 30-67A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A188B (w/ large hopper) | A188B (w/ large hopper) | S/N 18802349T – 18803521T | 18803521T | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-67A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A188B (w/ large hopper) | A188B (w/ large hopper) | S/N 18802349T – 18803521T | 18803521T | Comment Wheel Assembly P/N 40-101A, Brake Assembly P/N 30-67A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna T188C | T188C | S/N T18803325T – T18803521T | T18803521T | Comment Wheel Assembly P/N 40-101A, Brake Assembly P/N 30-67A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna T188C | T188C | S/N T18803325T – T18803521T | T18803521T | Comment Wheel Assembly P/N 40-101, Brake Assembly P/N 30-67A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Grumman G-164 | G-164 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-47. Brake Assembly P/N 30-32C. | Eligibility Chart |
| Grumman G-164A | G-164A | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67. | Eligibility Chart |
| Grumman G-164B | G-164B | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133. Brake Assembly P/N 30-84. | Eligibility Chart |
| Grumman G-164C | G-164C | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133. Brake Assembly P/N 30-84. | Eligibility Chart |
| Grumman G-164D | G-164D | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133. Brake Assembly P/N 30-84. | Eligibility Chart |
| Marsh (Modified AgCat) G-164C-T | G-164C-T | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133. Brake Assembly P/N 30-84. | Eligibility Chart |
| Marsh (Modified Thrush) S2R-T11 | S2R-T11 | S/N T11-001 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-129 or 40-133. Brake Assembly P/N 30-52A. Owner must verify wheel assembly part number. | Eligibility Chart |
| Marsh (Modified Thrush) S2R-T15 | S2R-T15 | S/N T15-001 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-129 or 40-133. Brake Assembly P/N 30-52A. Owner must verify wheel assembly part number. | Eligibility Chart |
| Marsh (Modified Thrush) S2R-T34 | S2R-T34 | S/N 6000 – 6049 | 6049 | Comment Wheel Assembly P/N 40-129 or 40-133. Brake Assembly P/N 30-52A. Owner must verify wheel assembly part number. | Eligibility Chart |
| Marsh (Modified Thrush) S2R-T45 | S2R-T45 | S/N T45-001DC – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-129 or 40-133. Brake Assembly P/N 30-52A. Owner must verify wheel assembly part number. | Eligibility Chart |
| Marsh (Modified Thrush) S2R-T65 | S2R-T65 | S/N T65-001DC – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-129 or 40-133. Brake Assembly P/N 30-52A. Owner must verify wheel assembly part number. | Eligibility Chart |
| Marsh (Modified Thrush) S2R-T660 | S2R-T660 | S/N T660-101 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-129 or 40-133. Brake Assembly P/N 30-52A. Owner must verify wheel assembly part number. | Eligibility Chart |
| Pacific Aerospace 08-600 | 08-600 | S/N 0 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-89. | Eligibility Chart |
| Piper PA-36-285 | PA-36-285 | S/N 36-7360001 – 36-7660135 | 36-7660135 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67B. | Eligibility Chart |
| Piper PA-36-300 | PA-36-300 | S/N 36-7560001 – 36-8160023 | 36-8160023 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67B. | Eligibility Chart |
| Piper PA-36-375 | PA-36-375 | S/N 36-7802001 – 36-8302025 | 36-8302025 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67B. | Eligibility Chart |
| Thrush (Ayres) S-2R | S-2R | S/N 1416R – 4999R | 4999R | Comment With conversion kit # 199-68A. Wheel Assembly P/N 40-33, Brake Assembly P/N 30-98A. | Eligibility Chart |
| Thrush (Ayres) S2RHG-T65 | S2RHG-T65 | S/N T65-002DC – T65-012DC | T65-012DC | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98D. | Eligibility Chart |
| Thrush (Ayres) S2RHG-T65 | S2RHG-T65 | S/N T65HG-011 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98D. | Eligibility Chart |
| Thrush (Ayres) S2R-R1340 | S2R-R1340 | S/N R1340-001DC – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98D. | Eligibility Chart |
| Thrush (Ayres) S2R-R1820 | S2R-R1820 | S/N R1820-001DC – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98D. | Eligibility Chart |
| Thrush (Ayres) S2R-R3S | S2R-R3S | S/N R3S-009DC – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98D. | Eligibility Chart |
| Thrush (Ayres) S2R-T11 | S2R-T11 | S/N T11-001 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly 40-133. Brake Assembly 30-98D. | Eligibility Chart |
| Thrush (Ayres) S2R-T15 | S2R-T15 | S/N T15-001 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98. | Eligibility Chart |
| Thrush (Ayres) S2R-T34 | S2R-T34 | S/N 6000 – 6049 | 6049 | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98D. | Eligibility Chart |
| Thrush (Ayres) S2R-T65 | S2R-T65 | S/N T65-001DC – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-133, Brake Assembly P/N 30-98D. | Eligibility Chart |
| Weatherly Aircraft Company 201A | 201A | S/N 110 – 601 | 601 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67D. | Eligibility Chart |
| Weatherly Aircraft Company 201B | 201B | S/N 602 – 1000 | 1000 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67D. | Eligibility Chart |
| Weatherly Aircraft Company 201C | 201C | S/N 1001 – 1500 | 1500 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67D. | Eligibility Chart |
| Weatherly Aircraft Company 620 | 620 | S/N 1501 – 1519 | 1519 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67D. | Eligibility Chart |
| Weatherly Aircraft Company 620A | 620A | S/N 1520 – 1584 | 1584 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67D or 30-89B. | Eligibility Chart |
| Weatherly Aircraft Company 620B | 620B | S/N 1550 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101 or 40-101E. | Eligibility Chart |
| Weatherly Aircraft Company 620B | 620B | S/N 1550 – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101. | Eligibility Chart |
| Weatherly Aircraft Company 620TP | 620TP | S/N 1502TP – 1519 | 1519 | Comment Wheel Assembly P/N 40-101. Brake Assembly P/N 30-67D. | Eligibility Chart |
| Weatherly Aircraft Company 620TP | 620TP | S/N 1502TP – ZZZZZZZZZZZZZZZ | ZZZZZZZZZZZZZZZ | Comment Wheel Assembly P/N 40-101. | Eligibility Chart |
