Part # APS66-10900-4K

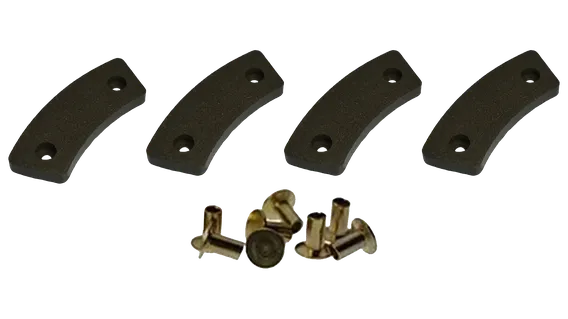

APS BRAKE LINING KIT, 4PK
$66.00
Retail Price: $82.51
In Stock
In Stock
Included Components (2 Part Types)
Details
Price / Qty
Buy
$0.30/each
Kit includes 8
In Stock
Sold in quantities of 25
$15.43/each
Kit includes 4
In Stock
Product Details
Specifications
- Approval
- Kit with Approved Contents
- Condition
- New
- Manufacturer
- APS
- Dimensions
- L: 1 x W: 4 x H: 6 in
- Weight
- 1.5 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- APS66-10900-4K
Product Description
APS Brake Lining and Rivet Kits
Complete Brake Relining Solutions Specific For Your Aircraft Application
Brake linings and rivets packaged together for easy ordering and installation. Choose APS brake linings for the greatest stopping power and long lining life. Made with Kevlar fibers integrated into the materials. The optimal operating temperature is 600-900 deg F. and can be used with APS discs or other PMA or OEM discs.
- Preconfigured kits combining APS brake linings with APS105-00200 brake rivets
- Built around specific aircraft brake assemblies and configurations
- Supports full brake relines without the need to source components separately
- Perfect for scheduled maintenance and overhauls
Note: Eligibility depends on the wheel, brake, and aircraft make, model, and serial number
What’s included:
- APS brake linings: selected for the applicable brake configuration
- APS brake rivets: (P/N APS105-00200) matched to lining installation requirements
| Kit Part Number | Brake Linings Included in the Kit | Brake Lining Qty Included in the Kit | Rivets Included in the Kit | Rivet Qty Included in the Kit |
|---|---|---|---|---|
APS66-10500 |
4 |
APS105-00200 |
8 |
|
APS66-10500 |
8 |
APS105-00200 |
16 |
|
APS66-10600 |
4 |
APS105-00200 |
12 |
|
APS66-10600 |
8 |
APS105-00200 |
24 |
|
APS66-10800 |
8 |
APS105-00200 |
16 |
|
APS66-10800 |
12 |
APS105-00200 |
24 |
|
APS66-11100 |
4 |
APS105-00200 |
12 |
|
APS66-11200 |
4 |
APS105-00200 |
8 |
|
APS66-10900 |
4 |
APS105-00200 |
8 |
|
APS66-10900 |
8 |
APS105-00200 |
16 |
Brake discs, rivets and pins also sold separately. APS linings can be used with any OEM or PMA discs.
Warning:
One of the most important factors in disc and lining performance and safety margins is proper break-in. In order for any brake system to work optimally, the disc and linings must be properly bedded. Please follow the break-in procedures upon installation. Lining Break-In Procedures
WARNING: Cancer and/or Reproductive Harm - California Proposition 65 Resources
Eligible Aircraft
| Make | Model | Start S/N | End S/N | Comment | Eligibility Chart |
|---|---|---|---|---|---|
| Cessna 150L | 150L | S/N 15072004 – 15074850 | 15074850 | Comment Wheel Assembly P/N D-30063, Brake Assembly P/N C-30018. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 150M | 150M | S/N 15075782 – 15079113 | 15079113 | Comment Wheel Assembly P/N 40-113 or D30291-6, Brake Assembly P/N 30-75, C30018 or C30018-4. Owner must verify wheel or brake assembly part number. | Eligibility Chart |
| Cessna A150L | A150L | S/N A1500227 – A1500429 | A1500429 | Comment Wheel Assembly P/N D-30063, Brake Assembly P/N C-30018. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A150M | A150M | S/N A1500524 – A1500717 | A1500717 | Comment Wheel Assembly P/N 40-113 or D30291-6, Brake Assembly P/N 30-75, C30018 or C30018-4. Owner must verify wheel or brake assembly part number. | Eligibility Chart |
| Cessna FA152 | FA152 | S/N FA1520337 – FA1520425 | FA1520425 | Comment Wheel Assembly P/N D-30600-1, Brake Assembly P/N C-30018-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna FA152 | FA152 | S/N FA1520337 – FA1520425 | FA1520425 | Comment Wheel Assembly P/N D-30580, Brake Assembly P/N C-30118-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna FA152 | FA152 | S/N FA1520337 – FA1520425 | FA1520425 | Comment Wheel Assembly P/N D-30291-6, Brake Assembly P/N C-30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna FA152 | FA152 | S/N FA1520337 – FA1520425 | FA1520425 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N C-30018-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 172A | 172A | S/N 46755 – 47746 | 47746 | Comment Wheel Assembly P/N 40-113, Brake Assembly P/N 30-75. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 172B | 172B | S/N 17247747 – 17248734 | 17248734 | Comment Wheel Assembly P/N 40-113, Brake Assembly P/N 30-75. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 172C | 172C | S/N 17248735 – 17249544 | 17249544 | Comment Wheel Assembly P/N 40-113, Brake Assembly P/N 30-75. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 172L | 172L | S/N 17259224 – 17260758 | 17260758 | Comment Wheel Assembly P/N D-30063, Brake Assembly P/N C-30018-2. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 172M | 172M | S/N 17260759 – 17261898 | 17261898 | Comment Wheel Assembly P/N D-30063, Brake Assembly P/N C-30018-2. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 172RG | 172RG | S/N 172RG0001 – 172RG1191 | 172RG1191 | Comment Wheel Assembly P/N 40-113, Brake Assembly P/N C-30018-6, C-30764-5. | Eligibility Chart |
| Cessna F172M | F172M | S/N F17200905 – F17201234 | F17201234 | Comment Wheel Assembly P/N D-30260, Brake Assembly P/N C-30018-2. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F172M | F172M | S/N F17201235 – F17201514 | F17201514 | Comment Wheel Assembly P/N D-30260, Brake Assembly P/N C-30018-2. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F172N | F172N | S/N F17201515 – F17201639 | F17201639 | Comment Wheel Assembly P/N D-30600-1, Brake Assembly P/N C-30018-6. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F172N | F172N | S/N F17201515 – F17202039 | F17202039 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N C-30018-6. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F172P | F172P | S/N F17202040 – F17202134 | F17202134 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N C-30018-6. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna FR172J | FR172J | S/N FR17200351 – FR17200590 | FR17200590 | Comment Wheel Assembly P/N D-30260, Brake Assembly P/N C-30018-2. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna FR172K | FR172K | S/N FR17200591 – F17200620 | F17200620 | Comment Wheel Assembly P/N D-30600-1, Brake Assembly P/N C-30018-6. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna FR172K | FR172K | S/N FR17200591 – FR17200675 | FR17200675 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N C-30018-6, C-30764-6. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna R172H (T-41D) | R172H (T-41D) | S/N R1720445 – R1720620 | R1720620 | Comment Wheel Assembly P/N D-30063, Brake Assembly P/N C-30018-2. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 177B | 177B | S/N 17701371 – 17702313 | 17702313 | Comment Wheel Assembly P/N D-30580, Brake Assembly P/N C-30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 177B | 177B | S/N 17701371 – 17702522 | 17702522 | Comment Wheel Assembly P/N D-30291-6, Brake Assembly P/N C-30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 177B | 177B | S/N 17701371 – 17702672 | 17702672 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N C-30018-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 177B | 177B | S/N 17701371 – 17702752 | 17702752 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N N/A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 177RG | 177RG | S/N 177RG0001 – 177RG0787 | 177RG0787 | Comment Wheel Assembly P/N D-30580, Brake Assembly P/N 30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 177RG | 177RG | S/N 177RG0001 – 177RG1051 | 177RG1051 | Comment Wheel Assembly P/N D-30291-6, Brake Assembly P/N 30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 177RG | 177RG | S/N 177RG0001 – 177RG1266 | 177RG1266 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N 30018-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 177RG | 177RG | S/N 177RG0001 – 177RG1366 | 177RG1366 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N N/A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F177RG | F177RG | S/N F177RG0001 – F177RG0138 | F177RG0138 | Comment Wheel Assembly P/N D-30580, Brake Assembly P/N 30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F177RG | F177RG | S/N F177RG0001 – F177RG0160 | F177RG0160 | Comment Wheel Assembly P/N D-30291-6, Brake Assembly P/N 30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F177RG | F177RG | S/N F177RG0001 – F177RG0177 | F177RG0177 | Comment Wheel Assembly P/N D-30660-1, Brake Assembly P/N 30018-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 180J | 180J | S/N 18052285 – 18052384 | 18052384 | Comment Wheel Assembly P/N D30291-3, Brake Assembly P/N C30118-4. | Eligibility Chart |
| Cessna 180J | 180J | S/N 18052285 – 18052500 | 18052500 | Comment Wheel Assembly P/N D-30063-1, Brake Assembly P/N C-30018-1. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 180J | 180J | S/N 18052385 – 18052770 | 18052770 | Comment Wheel Assembly P/N D30291-3, Brake Assembly P/N C30118-4. | Eligibility Chart |
| Cessna 180K | 180K | S/N 18052771 – 18052924 | 18052924 | Comment Wheel Assembly P/N D30291-3, Brake Assembly P/N C30118-4. | Eligibility Chart |
| Cessna 180K | 180K | S/N 18052771 – 18053203 | 18053203 | Comment Wheel Assembly P/N D30660-2, Brake Assembly P/N C30118-5. | Eligibility Chart |
| Cessna 182P | 182P | S/N 18262466 – 18265175 | 18265175 | Comment Wheel Assembly P/N D-30291-6, Brake Assembly P/N C-30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 182Q | 182Q | S/N 18265176 – 18267715 | 18267715 | Comment Wheel Assembly P/N D-30600-1, Brake Assembly P/N C-30018-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 182R | 182R | S/N 18267716 – 18268541 | 18268541 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna F182P | F182P | S/N F18200001 – F18200025 | F18200025 | Comment Wheel Assembly P/N 30291-6, Brake Assembly P/N C-30018-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F182Q | F182Q | S/N F18200026 – F18200064 | F18200064 | Comment Wheel Assembly P/N 30600-1, Brake Assembly P/N C-30018-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna F182Q | F182Q | S/N F18200026 – F18200169 | F18200169 | Comment Wheel Assembly P/N 30660-1, Brake Assembly P/N C-30018-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna FR182 | FR182 | S/N FR18200001 – FR18200070 | FR18200070 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D-30118-3. | Eligibility Chart |
| Cessna R182 | R182 | S/N R18200001 – R18202041 | R18202041 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D-30118-3. | Eligibility Chart |
| Cessna T182 | T182 | S/N 18267716 – 18268541 | 18268541 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D-30118-3. | Eligibility Chart |
| Cessna TR182 | TR182 | S/N R18200584 – R18202041 | R18202041 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D-30118-3. | Eligibility Chart |
| Cessna A185F | A185F | S/N 18502091 – 18502310 | 18502310 | Comment Wheel Assembly P/N D-30291-1, Brake Assembly P/N D-30118-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A185F | A185F | S/N 18502091 – 18502310 | 18502310 | Comment Wheel Assembly P/N D-30291-3, Brake Assembly P/N D-30118-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A185F | A185F | S/N 18502091 – 18502310 | 18502310 | Comment Wheel Assembly P/N D-30660-2, Brake Assembly P/N D-30118-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A185F | A185F | S/N 18502311 – 18504448 | 18504448 | Comment Wheel Assembly P/N D-30291-3, Brake Assembly P/N D-30118-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A185F | A185F | S/N 18502311 – 18504448 | 18504448 | Comment Wheel Assembly P/N D-30660-2, Brake Assembly P/N D-30118-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna A185F | A185F | S/N 18502311 – 18504448 | 18504448 | Comment Wheel Assembly P/N D-30291-1, Brake Assembly P/N D-30118-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna U206F | U206F | S/N U20602200 – U20603521 | U20603521 | Comment Wheel Assembly P/N D-30291-1, Brake Assembly P/N D-30118-6. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna U206G | U206G | S/N U20603522 – U20604649 | U20604649 | Comment Wheel Assembly P/N D-30291-1, Brake Assembly P/N D-30118-6. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna U206G | U206G | S/N U20603522 – U20607020 | U20607020 | Comment Wheel Assembly P/N D-30660-3, Brake Assembly P/N D-30118-4. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 210D | 210D | S/N 21058221 – 21058510 | 21058510 | Comment Wheel Assembly P/N D-30291-2, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210E | 210E | S/N 21058511 – 21058715 | 21058715 | Comment Wheel Assembly P/N D-30291-2, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210F | 210F | S/N 21058716 – 21058818 | 21058818 | Comment Wheel Assembly P/N D-30291-2, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210G | 210G | S/N 21058819 – 21058936 | 21058936 | Comment Wheel Assembly P/N D-30291-2, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210H | 210H | S/N 21058937 – 21059061 | 21059061 | Comment Wheel Assembly P/N D-30291-2, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210J | 210J | S/N 21059062 – 21059199 | 21059199 | Comment Wheel Assembly P/N D-30291-2, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210K | 210K | S/N 21059200 – 21059502 | 21059502 | Comment Wheel Assembly P/N D-30291-2, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210L | 210L | S/N 21059503 – 21060089 | 21060089 | Comment Wheel Assembly P/N D-30291-2, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210L | 210L | S/N 21059503 – 21061573 | 21061573 | Comment Wheel Assembly P/N D-30660-3, Brake Assembly P/N D-30118-4. | Eligibility Chart |
| Cessna 210M | 210M | S/N 21061574 – 21062954 | 21062954 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210M | 210M | S/N 21061574 – 21062954 | 21062954 | Comment Wheel Assembly P/N D-30660-3, Brake Assembly P/N D-30118-4. | Eligibility Chart |
| Cessna 210N | 210N | S/N 21062955 – 21064135 | 21064135 | Comment Wheel Assembly P/N D-30660-3, Brake Assembly P/N D-30118-4. | Eligibility Chart |
| Cessna 210N | 210N | S/N 21062955 – 21064135 | 21064135 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210N | 210N | S/N 21064136 – 21064897 | 21064897 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D30118-4. | Eligibility Chart |
| Cessna 210N | 210N | S/N 21064136 – 21064897 | 21064897 | Comment Wheel Assembly P/N D-30660-3, Brake Assembly P/N D-30118-4. | Eligibility Chart |
| Cessna 210R | 210R | S/N 21064898 – 21065009 | 21065009 | Comment Wheel Assembly P/N D-30660-3, Brake Assembly P/N D-30118-4. | Eligibility Chart |
| Cessna 210R | 210R | S/N 21064898 – 21065009 | 21065009 | Comment Wheel Assembly P/N 30660-3, Brake Assembly P/N D30118-4. | Eligibility Chart |
