Part # APS66-11100-4K

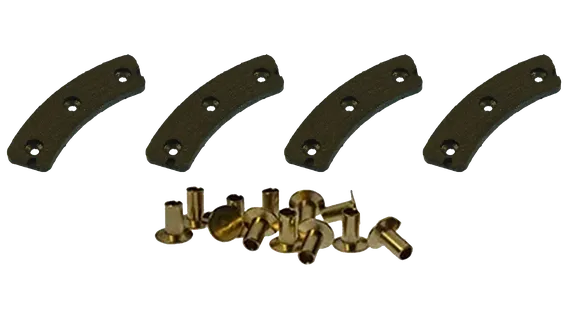

APS BRAKE LINING KIT, 4PK
Included Components (2 Part Types)
$0.30/each
Kit includes 12
$11.20/each
Kit includes 4
Product Details
Specifications
- Approval
- Kit with Approved Contents
- Condition
- New
- Manufacturer
- APS
- Dimensions
- L: 1 x W: 4 x H: 6 in
- Weight
- 1.5 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- APS66-11100-4K
Product Description
APS Brake Lining and Rivet Kits
Complete Brake Relining Solutions Specific For Your Aircraft Application
Brake linings and rivets packaged together for easy ordering and installation. Choose APS brake linings for the greatest stopping power and long lining life. Made with Kevlar fibers integrated into the materials. The optimal operating temperature is 600-900 deg F. and can be used with APS discs or other PMA or OEM discs.
- Preconfigured kits combining APS brake linings with APS105-00200 brake rivets
- Built around specific aircraft brake assemblies and configurations
- Supports full brake relines without the need to source components separately
- Perfect for scheduled maintenance and overhauls
Note: Eligibility depends on the wheel, brake, and aircraft make, model, and serial number
What’s included:
- APS brake linings: selected for the applicable brake configuration
- APS brake rivets: (P/N APS105-00200) matched to lining installation requirements
| Kit Part Number | Brake Linings Included in the Kit | Brake Lining Qty Included in the Kit | Rivets Included in the Kit | Rivet Qty Included in the Kit |
|---|---|---|---|---|
APS66-10500 |
4 |
APS105-00200 |
8 |
|
APS66-10500 |
8 |
APS105-00200 |
16 |
|
APS66-10600 |
4 |
APS105-00200 |
12 |
|
APS66-10600 |
8 |
APS105-00200 |
24 |
|
APS66-10800 |
8 |
APS105-00200 |
16 |
|
APS66-10800 |
12 |
APS105-00200 |
24 |
|
APS66-11100 |
4 |
APS105-00200 |
12 |
|
APS66-11200 |
4 |
APS105-00200 |
8 |
|
APS66-10900 |
4 |
APS105-00200 |
8 |
|
APS66-10900 |
8 |
APS105-00200 |
16 |
Brake discs, rivets and pins also sold separately. APS linings can be used with any OEM or PMA discs.
Warning:
One of the most important factors in disc and lining performance and safety margins is proper break-in. In order for any brake system to work optimally, the disc and linings must be properly bedded. Please follow the break-in procedures upon installation. Lining Break-In Procedures
WARNING: Cancer and/or Reproductive Harm - California Proposition 65 Resources
Eligible Aircraft
| Make | Model | Start S/N | End S/N | Comment | Eligibility Chart |
|---|---|---|---|---|---|
| Beechcraft 35-33 | 35-33 | S/N CD-1 – CD-250 | CD-250 | Comment Wheel Assembly P/N 40-1. Brake Assembly P/N 30-1. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Beechcraft 35-A33 | 35-A33 | S/N CD-225 – CD-387 | CD-387 | Comment Wheel Assembly P/N 40-1. Brake Assembly P/N 30-1. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Beechcraft 35-B33 | 35-B33 | S/N CD-388 – CD-639 | CD-639 | Comment Wheel Assembly P/N 40-1. Brake Assembly P/N 30-1. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Cessna 210C | 210C | S/N 21058086 – 21058220 | 21058220 | Comment Wheel Assembly P/N 40-21, Brake Assembly P/N 30-45. | Eligibility Chart |
| Mooney M20A | M20A | S/N 1201 – 1700 | 1700 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20A | M20A | S/N 1201 – 1700 | 1700 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20B | M20B | S/N 1701 – 1939 | 1939 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20B | M20B | S/N 1701 – 1939 | 1939 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20C | M20C | S/N 1940 – 2806 | 2806 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20C | M20C | S/N 1940 – 2806 | 2806 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20C | M20C | S/N 2807 – 3466 | 3466 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20C | M20C | S/N 2807 – 3466 | 3466 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20D | M20D | S/N 101 – 251 | 251 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20D | M20D | S/N 252 – 260 | 260 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. | Eligibility Chart |
| Mooney M20E | M20E | S/N 101 – 469 | 469 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Mooney M20E | M20E | S/N 470 – 1308 | 1308 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Mooney M20E | M20E | S/N 690001 – 690073 | 690073 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
| Mooney M20E | M20E | S/N 700001 – 700061 | 700061 | Comment Wheel Assembly P/N 40-24. Brake Assembly P/N 30-5. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers. | Eligibility Chart |
