Part # EMA01502

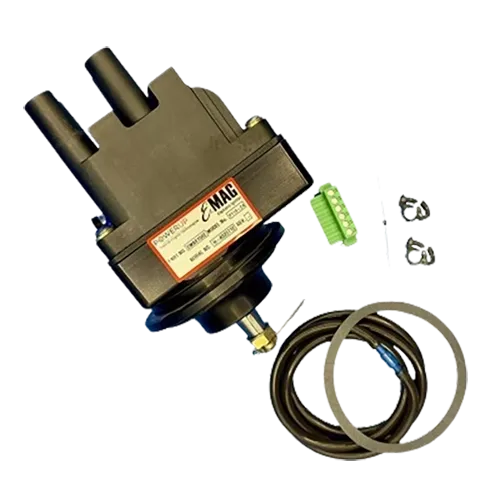

E-MAG 4 CYL. CONTINENTAL
Product Details
Specifications
- Approval
- Condition
- New
- Manufacturer
- Hartzell Engine Technologies
- Dimensions
- L: 8 x W: 8 x H: 9 in
- Weight
- 7 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- EMA01502
Product Description
E-Magneto (P114-C4) Continental 4-Cylinder Engine
EMA01502 Four Cylinder E-MAG
Replace the traditional magneto on your 4-cylinder Continental-style experimental engine with the E-MAG EMA01502 (P114-C4) series magneto. For Continental O-200, IO-240, and similar installations. Featuring the same high-energy variable-timing ignition platform as the Lycoming model, factory-configured for the typical Continental accessory case drive direction.
Timing setup uses the built-in TC Locator function and LED/tone guidance; no timing light or special tools required. The ignition is self-powered by an internal brushless alternator, providing a true dual-electronic ignition option without auxiliary backup batteries.
Key Features:
- Drop-in replacement for Continental-style 4-cylinder experimental engines
- Pre-configured DIR for standard overhead Continental ignition mount orientation
- Variable and fixed operating modes
- Internal self-powering alternator
- Multi-strike firing sequence for cold-weather and flooded-start resistance
- LED color-coded setup system (TC = yellow, MIN = blue, MAX = white, HOT = red)
- Compatible with 12V, 24V, or 48V bus
- For experimental aircraft use only
Need help ordering? Use our E-Magneto Installation Buying Guide!
| E-Magneto Part Numbers | Engine | Features |
|---|---|---|
6-Cylinder Lycoming |
||
6-Cylinder Lycoming |
Fixed Timing |
|
4-Cylinder Lycoming |
||
4-Cylinder Continental |
||
6-Cylinder Continental |
Requires:
Complete Ignition Kits with all necessary components for installation also available:
WARNING: Cancer and/or Reproductive Harm - California Proposition 65 Resources
FAQs
Do E-MAG ignitions require a backup battery?
No. E-MAG ignitions are self-powered once the engine is running. A built-in alternator takes over at approximately 800 RPM, eliminating the need for a backup battery.
Are e-magnetos a direct replacement for a magneto?
Yes. E-MAG ignitions are designed as a drop-in replacement for traditional magnetos on compatible experimental engines, reducing installation complexity.
How is ignition timing set on an E-MAG?
Timing is set using LED indicators and manifold pressure pulses. The system references top dead center (TDC) and stores timing electronically, eliminating the need for traditional timing tools.
Do E-MAG ignitions require special wiring?
E-MAG uses a simple control plug with connections for:
- Power (14/28/48V bus)
- Ground
- P-lead (kill switch)
- Optional tach output
Can I reuse my existing magneto wiring?
Yes, in many cases the existing p-lead wiring can be reused, though shielding is not required for E-MAG systems.
Do I need a mode switch (Fixed vs Variable timing)?
- Optional for normally aspirated engines
- Required for boosted engines
- Variable mode allows automatic timing advance based on RPM and manifold pressure.
Why is my engine hard starting with E-MAG ignition?
Hard starting is often caused by over-priming or incorrect starting technique, especially on fuel-injected engines. Adjusting mixture and starting procedure typically resolves the issue.
Why isn’t my E-MAG firing?
Common causes include:
- P-lead grounded (ignition OFF)
- Wiring connection issues
- Incorrect timing setup
- Sensor alignment problems indicated by LED signals
