Home / Shop Parts / EMA74001

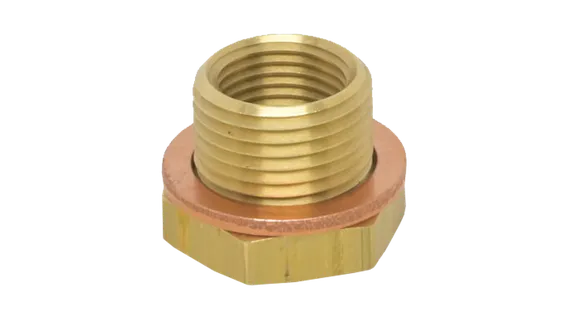

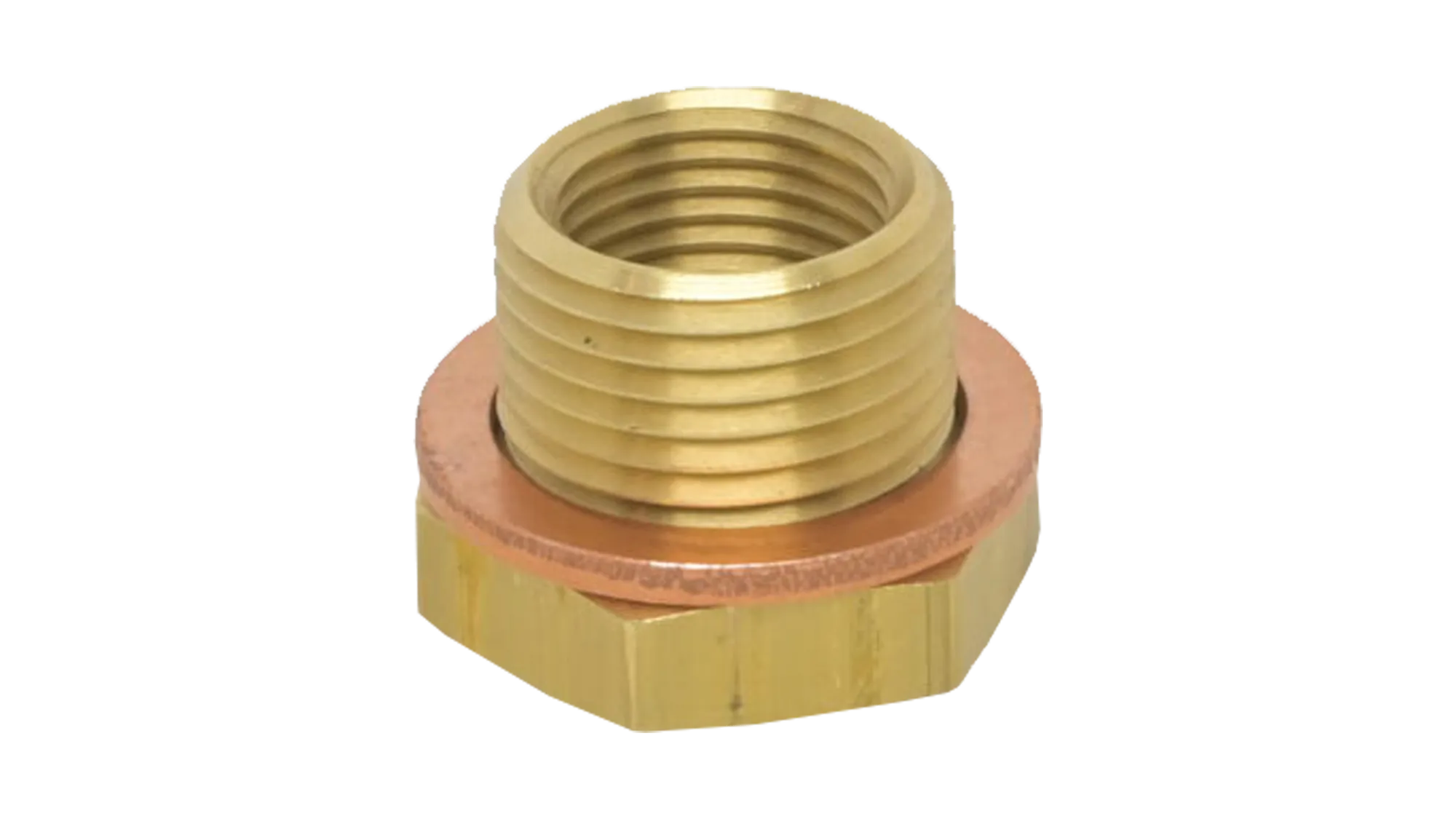

EMA74001_ADAPTER_KIT_SHORT_REACH_4_CYL_Hartzell_Aviation_E-Magneto_Parts

P/N: EMA74001

Name: ADAPTER KIT, SHORT REACH, 4 CYL.
Brand: Hartzell Engine Technologies
SKU: EMA74001
Price: 137.57 USD
Availability: BackOrder

ADAPTER KIT, SHORT REACH, 4 CYL.

Jump to product details

Share this product:

Approval
Condition	New
Manufacturer	Hartzell Engine Technologies
Dimensions	L: 4 x W: 2 x H: 5 in
Weight	1 lbs
Unit of Measure	Each
Retail Price	$171.97
Your Price	$137.57
Stock Status	Expected ship date is 07-27-2026.

Documents

FAQs

Frequently Asked Questions

Related Categories

Product Details

E-Magneto Adapter Kits

EMAG Auto Spark Plug Adapter Bundles

Adapter kits convert the standard 18mm aircraft spark plug thread in your cylinders to accept 14mm automotive-style spark plugs for use with the E-MAG ignition system. Must match your cylinder thread depth (Short Reach or Long Reach).

E-MAG auto plug adapter kits convert the 18mm aircraft spark plug bore in Lycoming and Continental experimental engines to accept standard 14mm automotive spark plugs. Aircraft engines are manufactured with either Short Reach (SR, ~1/2" thread depth) or Long Reach (LR, ~3/4" thread depth) cylinder bores, select the correct kit to match your engine.

To identify your cylinder thread depth:

Short Reach (SR): Aircraft plug call-out contains the letter "M" (e.g., REM series). SR adapters reduce 18mm to 14mm thread for short reach (19mm) auto plugs (NGK BR8ES or BR8EIX).
Long Reach (LR/LRX): Aircraft plug call-out contains the letter "B" (e.g., REB series). LR adapters reduce 18mm to 14mm thread for long reach (26.5mm) auto plugs (Denso IKH27). LRX adapters are the same as LR except the hex head is extended to better fit certain Continental (six cylinder) heads where the plug insertion face is recessed.
Thread depth can also be measured directly in the cylinder

Installation Note: Always install the spark plug into the adapter first (finger-tight and fully seated), then install the combined assembly into the engine. Torque to 18 ft/lb through the spark plug only, do NOT torque the adapter directly. Use anti-seize sparingly on the engine-side threads only.

Adapter Part Number	Individual vs Kit	Reach	Engine	Copper Gasket
EMC01101	Individual	Short		Yes
EMC00101	Individual	Short		No
EMC01201	Individual	Long		Yes
EMC00201	Individual	Long		No
EMC01301	Individual	Extra Long		Yes
EMC00301	Individual	Extra Long		No
EMA74001	Set of 4	Short	4-Cylinder	Yes
EMB60401	Set of 6	Short	6-Cylinder	Yes
EMA73001	Set of 4	Long	4-Cylinder	Yes
EMB60301	Set of 6	Long	6-Cylinder	Yes
EMB60501	Set of 6	Extra Long	6-Cylinder	Yes

Note: LRX (Extra Long Reach) adapters feature an extended hex head to facilitate installation and removal in Continental 550-series and similar engines where the plug seat area is recessed.
