Part # EMC00201

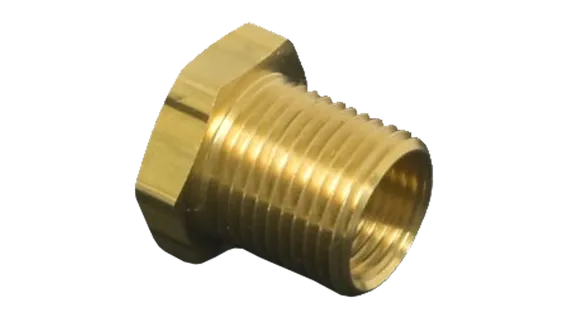

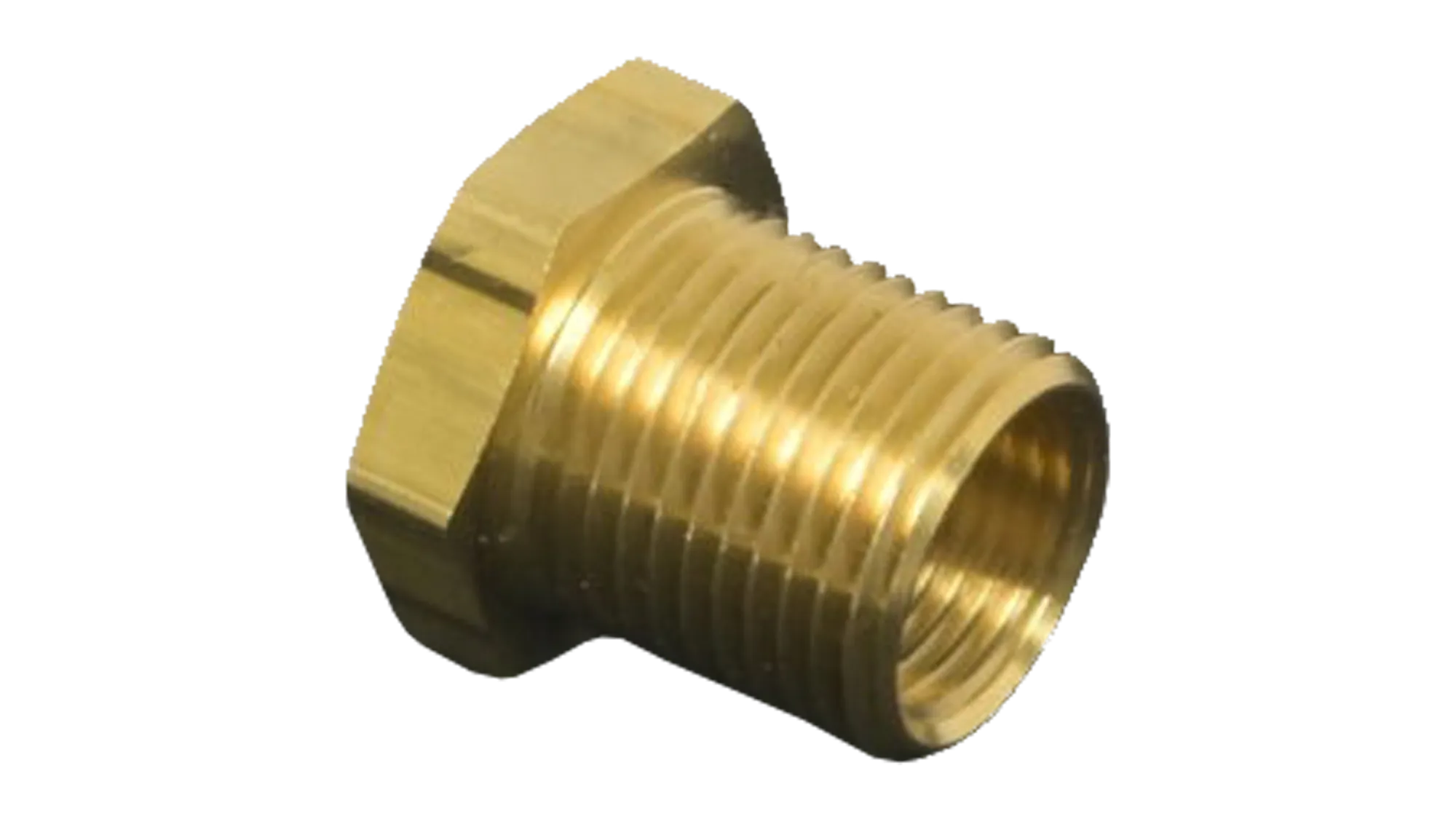

PLUG, ADAPTER, LONG REACH, NO GASKET
Product Details
Specifications
- Approval
- Condition
- New
- Manufacturer
- Hartzell Engine Technologies
- Dimensions
- L: 4 x W: 2 x H: 5 in
- Weight
- 0.25 lbs
- Unit of Measure
- Each
- McFarlane Part Number
- EMC00201
Product Description
E-Magneto Adapters
E-MAG Auto Spark Plug Adapters Individual
Individual replacement auto plug adapters for E-MAG ignition installations. Used when replacing a single worn or damaged adapter without purchasing a full kit. Available in Short Reach (SR), Long Reach (LR), and Extra Long Reach (LRX) configurations to match your cylinder thread depth. Match adapter reach to your engine's cylinder bore depth.
Single adapters available:
- EMC01101: short reach auto adapter
- EMC01201: long reach auto adapter
- EMC01301: extra long reach auto adapter
To identify your cylinder thread depth:
- Short Reach (SR): Aircraft plug call-out contains the letter "M" (e.g., REM series). SR adapters reduce 18mm to 14mm thread for short reach (19mm) auto plugs (NGK BR8ES or BR8EIX).
- Long Reach (LR/LRX): Aircraft plug call-out contains the letter "B" (e.g., REB series). LR adapters reduce 18mm to 14mm thread for long reach (26.5mm) auto plugs (Denso IKH27). LRX adapters are the same as LR except the hex head is extended to better fit certain Continental (six cylinder) heads where the plug insertion face is recessed.
- Cylinder thread depth can also be measured directly. Short Reach (“SR”) adapters have external thread length of approximately 1/2”. Long Reach (“LR”) adapters have external thread length of approximately 3/4”.
Installation Note: Always install the spark plug into the adapter first (finger-tight and fully seated), then install the combined assembly into the engine. Torque to 18 ft/lb through the spark plug only, do NOT torque the adapter directly. Use anti-seize sparingly on the engine-side threads only.
| Adapter Part Number | Individual vs Kit | Reach | Engine | Copper Gasket |
|---|---|---|---|---|
Individual |
Short |
Yes |
||
Individual |
Short |
No |
||
Individual |
Long |
Yes |
||
Individual |
Long |
No |
||
Individual |
Extra Long |
Yes |
||
Individual |
Extra Long |
No |
||
Set of 4 |
Short |
4-Cylinder |
Yes |
|
Set of 6 |
Long |
6-Cylinder |
Yes |
|
Set of 4 |
Long |
4-Cylinder |
Yes |
|
Set of 6 |
Short |
6-Cylinder |
Yes |
|
Set of 6 |
Extra Long |
6-Cylinder |
Yes |
Note: LRX (Extra Long Reach) adapters feature an extended hex head to facilitate installation and removal in Continental 550-series and similar engines where the plug seat area is recessed.
