Alaska Gear Company
A compact and lightweight assembly that hydraulically dampens oscillations in the tailwheel to eliminate tailwheel shimmy and stabilize your tailwheel. The tailwheel shimmy dampener is designed to compensate for improper tailwheel caster angle, reduce internal tailwheel assembly friction, and poor tail wheel maintenance.
- FAA-PMA Approved
- Smooth landings
- Reduced aircraft wear and tear
- No headache installation and maintenance
- Includes STC
Other Considerations:
- Not compatible with the T3 Tailwheel Suspension
- A long pawl (ABI3219-02) assembly is REQUIRED.
- Installation of the tailwheel shimmy dampener on Cessna 170 aircraft with 3200 Series tailwheel assemblies requires and aircraft-specific leaf spring adapter plate.
Which tailwheel do you need? Follow the simple 2-steps below!
Step 1.) Select your tailwheel assembly to find the base shimmy dampener part number:
|
Tailwheel Assembly
|
Base P/N
|
|

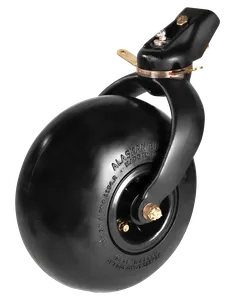

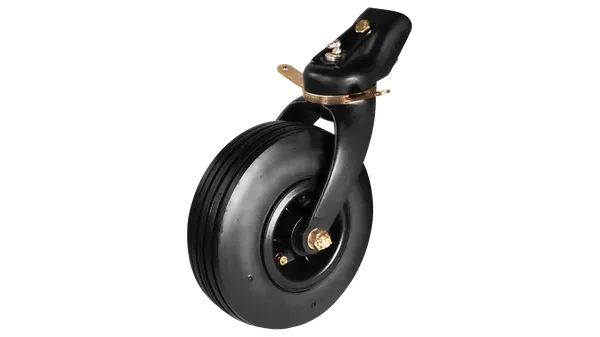

3200 Bent Assembly
|
KEG-117
|
|
3200 Straight Assembly
|
KEG-116
|
|
3200-3 2 Hole Straight Assembly
|
KEG-118
|
|

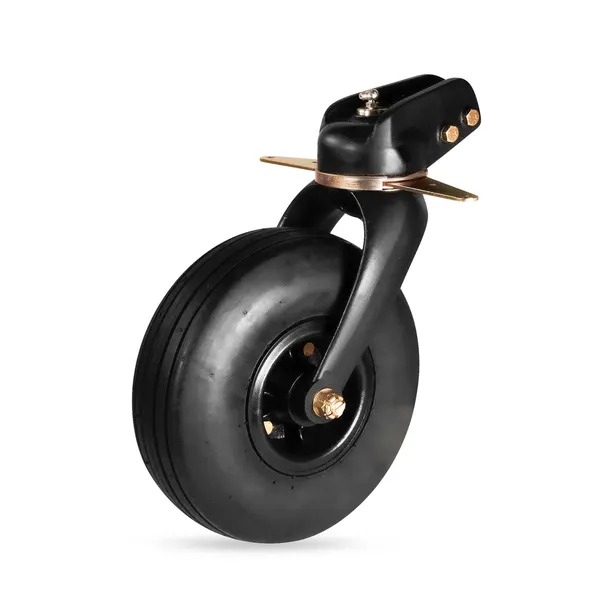

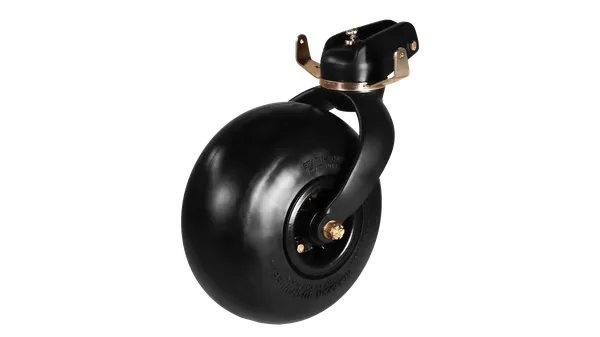

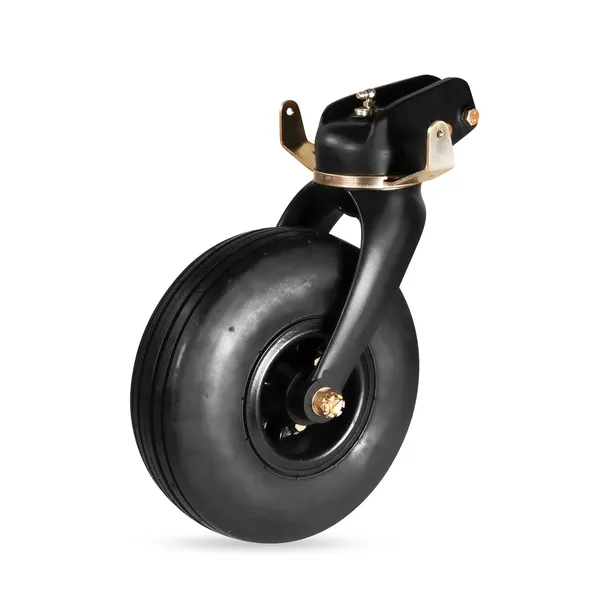

3400/3450 Bent Assembly
|
KEG-111
|
|
3400/3450 Straight Assembly
|
KEG-112
|
|

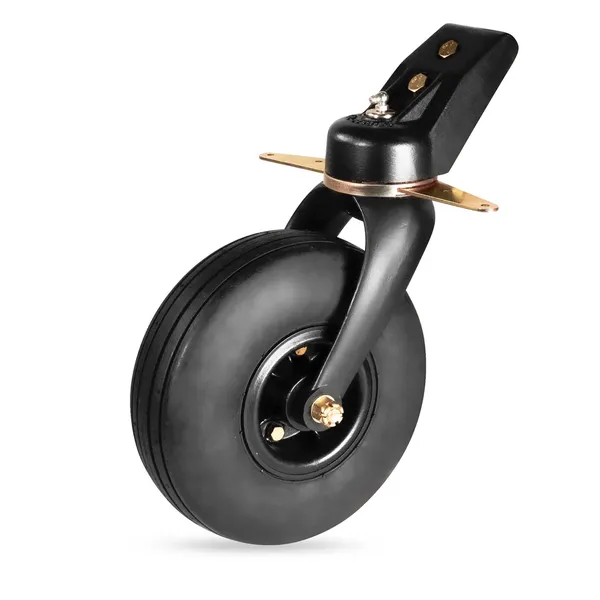

3450-23 2 Hole Straight Assembly
|
KEG-113
|
Step 2.) Select additional options:
| If KEG-116 or KEG-117: |
Full P/N
|
|
|
Select your tail spring width
|
KEG-116
|
KEG-117
|
| 1-1/4" | ||
| 1-1/2" | ||
| 1-3/4" | ||
| Cessna 170 Adapter Plate | ||
| If KEG-111 or KEG-112 |
Full P/N
|
|
|
Select Tailwheel
|
KEG-111
|
KEG-112
|
| ABI Tailwheel | ||
| SCOTT Tailwheel | ||
| If KEG-118 or KEG-113 |
Full P/N
|
|
|
No additional options
|
||
Warranty Policy: Warranty protection, when offered, will vary between manufacturers and products lines. Please contact customer support for any warranty claims.
For ordering information, go to Tailwheel Shimmy Dampener.
Wheel Assemblies, Brake Assemblies, and Complete Kits
After mastering the bush tire, in 2013 Alaska Gear Company's Alaskan Bushwheels turned to improving the standard Cleveland wheel and brake design. The FAA-PMA result of that design process is the line of ABI wheel and brake kits. Due to the material improvement of being made with aluminum versus magnesium, ABI wheel and brake kits improve corrosion resistance and part longevity particularly in wet or salty environments. ABI kits contain all components required to replace the existing wheels and brakes for one aircraft.
- Anodized using MIL SPEC A-8625, Type II, Class II, Black
- More resistant to corrosion
- Longer lasting
- Complete kit and subassembly parts available
- FAA-PMA Approved
- Use APS Black Steel brake discs

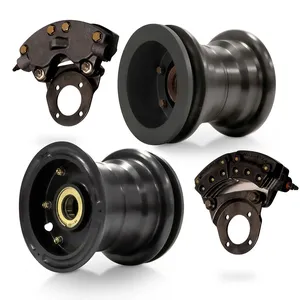

Wheel and Brake Kits
|
Complete Kit
|
Cleveland P/N
|
FAA-PMA'd
|
Initial STC Install
|
Notes
|
|
ABI-199-62A (6 bolt, 1 1/2" axle)
|
199-62A
|
Cessna 180, 185, and 206 |
Piper J-3, J3C, PA-11,-12,-14,-16,-18 and Cessna 170, 172, 180, and some 185s
|
Kit includes (2) ABI-40-75T wheel assemblies and (2) ABI-30-52N brake assemblies (including bearings, races, bolts, etc.). Kit incompatible and has fitment issues with all C172 tubular gear airplanes. |
|
ABI-199-71 (6 bolt, 1 1/4" axle)
|
199-71
|
Piper J-3, J5C, PA-11,-12,-14,-15,-16,-17, PA-18 "150", PA-18A "150", and PA-20 | Kit includes (2) ABI-40-60 wheel assemblies and (2) ABI-30-60A brake assemblies (including bearings, races, bolts, etc). | |
|
ABI-199-62 (3 bolt, 1 1/2" axle)
|
199-62
|
Cessna 180, 185, 206, Maule Series M-4 through M-9, American Champion Series 7 & 8 |
Piper J-3, J3C, PA-11,-12,-14,-16,-18 and Cessna 170, 172, 180, and some 185s
|
Kit includes (2) ABI 40-75D wheel assemblies and (2) ABI-30-52N brake assemblies (including bearings, races, bolts, etc.). Kit incompatible and has fitment issues with all C172 tubular gear airplanes. |
Warranty Policy: Warranty protection, when offered, will vary between manufacturers and products lines. Please contact customer support for any warranty claims.
For ordering information, go to Wheel and Brake Kits.
